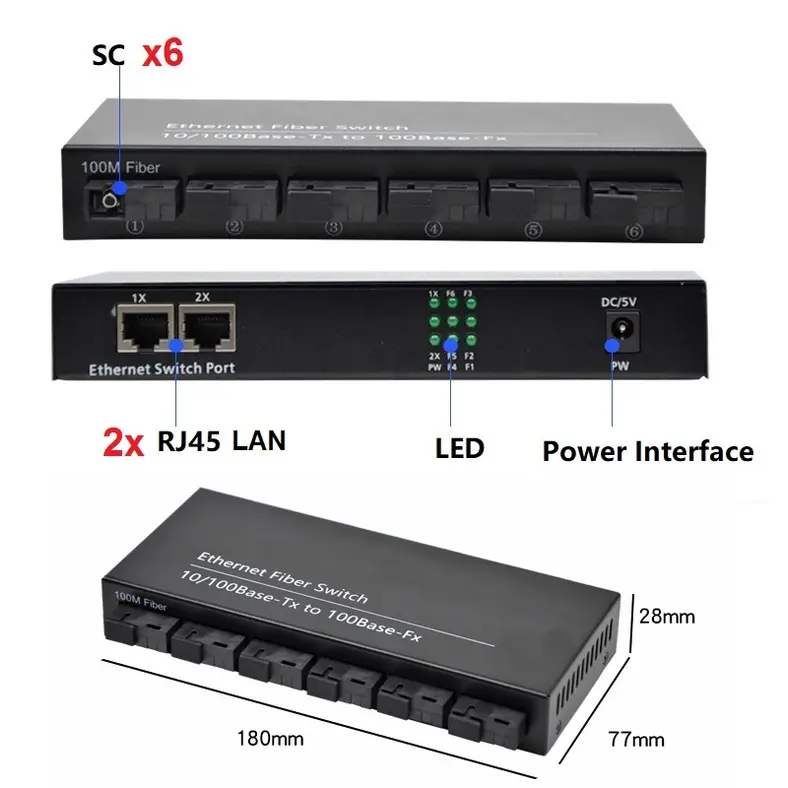

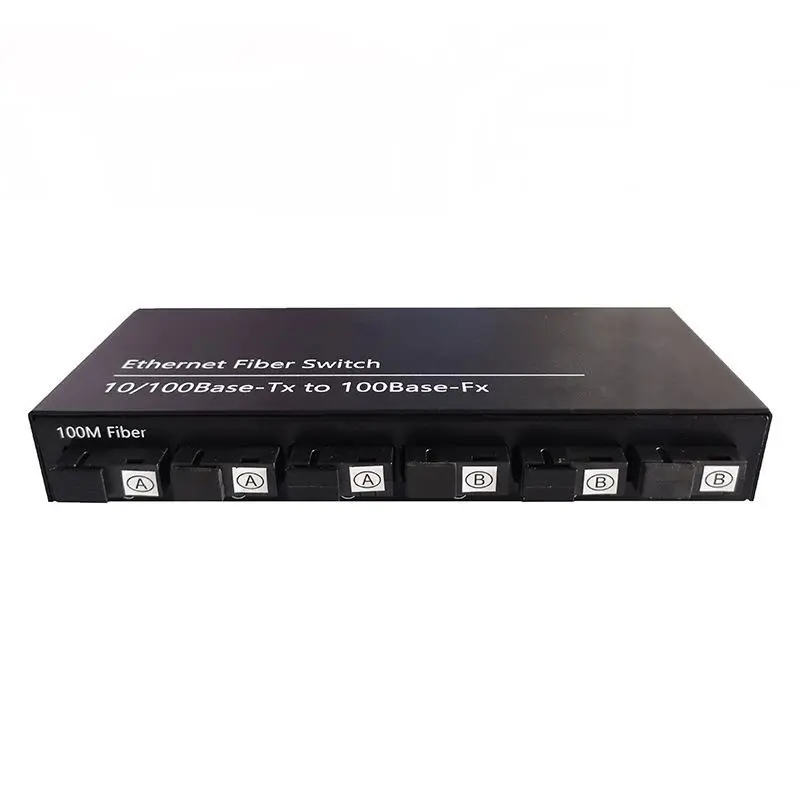

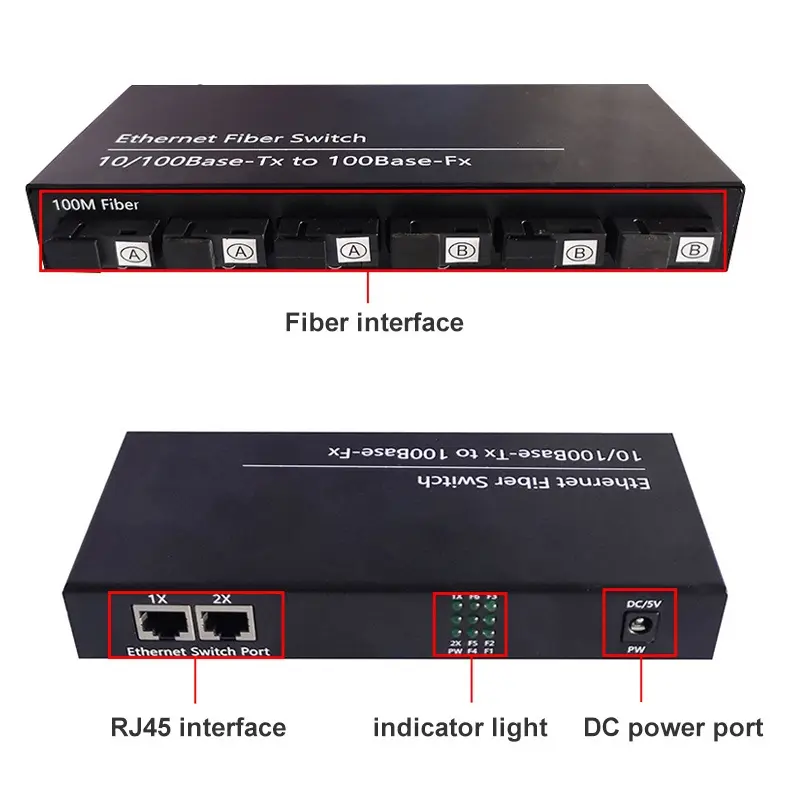

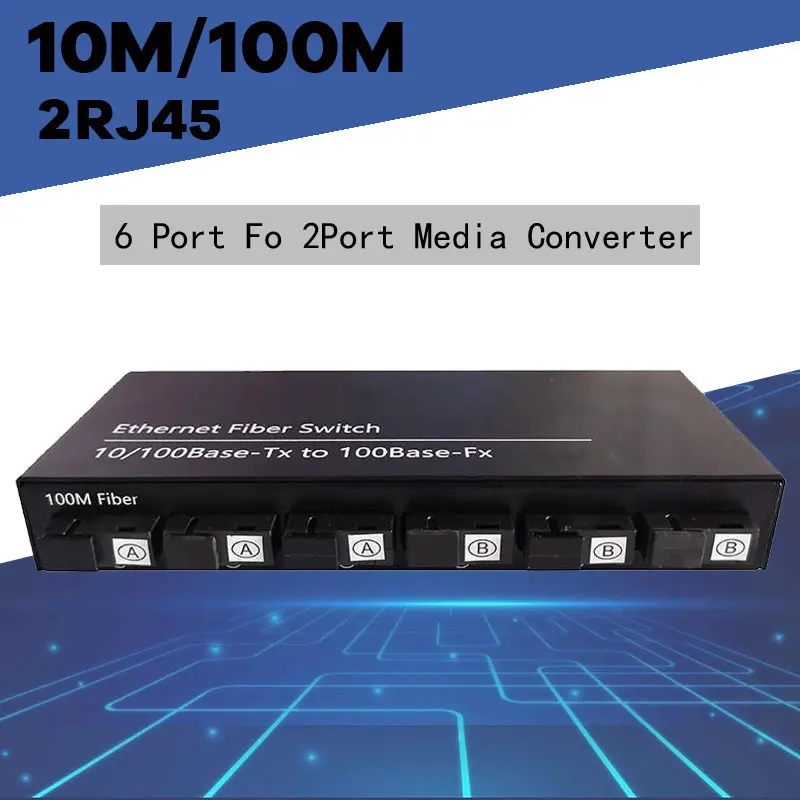

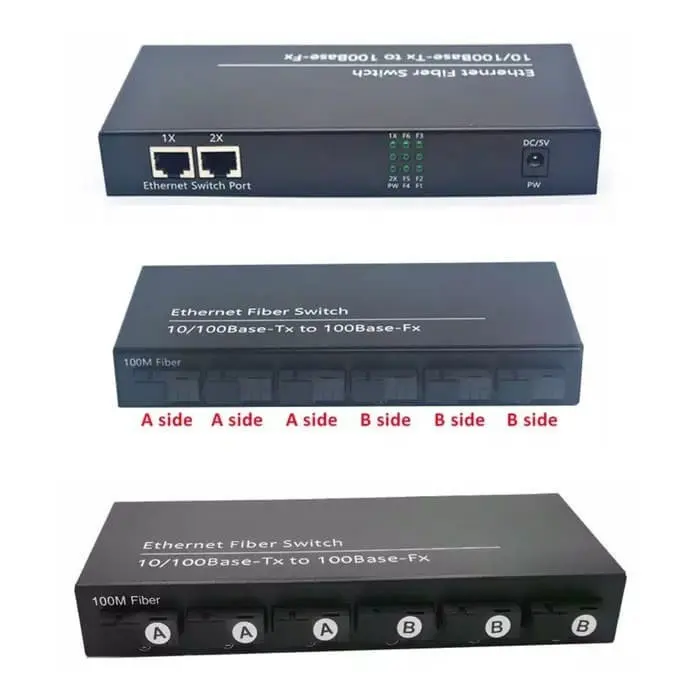

Ethernet fiber optical media converter digital video 6SC-2RJ45 UTP LAN1. Support the switch between 10/100Base-TX and 100Base-FX2. 6*155Mbps full-duplex fiber ports and 2*100M Ethernet ports with auto-negotiation function3. Support 100M speed rate, MDI/MDIX and half/full-duplex with auto-negotiation function4. Each port has the complete LED Indicator light5. Support single mode single fiber,single mode dual fiber ,multi-mode dual fiber and SFP slot6. Support IEEE802.1d Spanning Tree7. Support high performance QoS function on each port8. Support 12V voltage input9. Support IEEE 802.3x flow control and back pressure control10. Require no configuration and will instantly operate as soon as you power it up.11. Low power consumption chip with heat sink built in to ensure longtime efficient operationĀ Specifications:StandardsIEEE802.3 10Base-TIEEE802.3u 100Base-TX/FXIEEE802.3z 1000Base-SX/LXIEEE802.3x Flow controlIEEE802.1p QoSIEEE802.1d Spanning TreeEthernet PortĀ Connector: RJ45Data Rate:10/100M or 10/100/1000MDistance: 100mUTP Type: UTP-5E or higher levelĀ Fiber PortConnector: SC/FC/ST/SFP slotData Rate: 155M or 1.25GbpsOptical Wavelength: 850nm/1310nm/1490nm/1550nmDistance: 550mļ½120kmĀ PerformanceProcessing Type: Store and ForwardMAC Table Size:4K/6K/8KBuffer Space: 500kbs/1Mbit/2MbitJumbo Packet: 1518 bytesBack bandwidth: 3.8G/5.6G/7.2GTime Delay: ļ¼150μsĀ PowerPower type: external power supplyInput Voltage: AC100Vļ½240V 50/60HzConnector: DC SocketWorking Voltage: 12VPower Consumption: 2.2Wļ½3.5WĀ Transmissin DistanceTwisted Pair: 100m (CAT5e, CAT6 cables)Muti-mode: 2kmSingle-mode: 3/20/40/60/80/100kmMTBF 100, 000 hoursĀ EnvironmentStorage Temperature: -40ļ½70Operating Temperature: -10ļ½55Relative Humidity: 5-90% ( no condensation)
