Media Converter Netlink HTB3100 A B FO - FO Converter Single-Mode HTB 3100 10/100Mbps

MEREK :netLINK

Model:HTB-3100AB

Features:

-An RJ45 ports and a single-fiber SC optical port,to achieve optical signal conversion between 10/100base TX twisted pair (Ethernet )and 100base FX (fiber optic);

-Core optical fiber can be completed in just one way signal transmission compared to dual fiber optic data transmission mode to improve the quantity doubled;

-Compliance with IEEE802.3 10Base-T and IEEE802.3u 100Base-TX, 100Base-FX standards;

-Has 10M/100M adaptive capacity;

-Ethernet interface can adaptively direct line / crossover cable connection;

-Support full / half duplex mode;

-Support IEEE802.3X duplex flow control and half-duplex backpressure flow control;

-Supports broadcast storm prevention function;

-Built- in lightning protection circuit , which can greatly reduce the damage caused by lightning induction;

-UTP up to 100 meters; longest 100 km single-mode fiber;

-Six LED indicators: Power, TX 100, TX Link / Act, FX 100, FX Link / Act, FDX / Col;easy to monitor the working status of the transceiver and determine the cause of the fault;

-Ambient temperature: 0-70 degree

-Humidity: 5% to 90%

Fiber Optic Parameters:

Fiber optic type:Single mode

Connector type:SC

Transmit Wave length:1310/1550nm

Transmission distance:25 Km

Min TX PWR:-9.0 dBm

Max TX PWR:-3 dBm

Sensitivity:-31.0 dBm

Link Budget:22.0 dBm

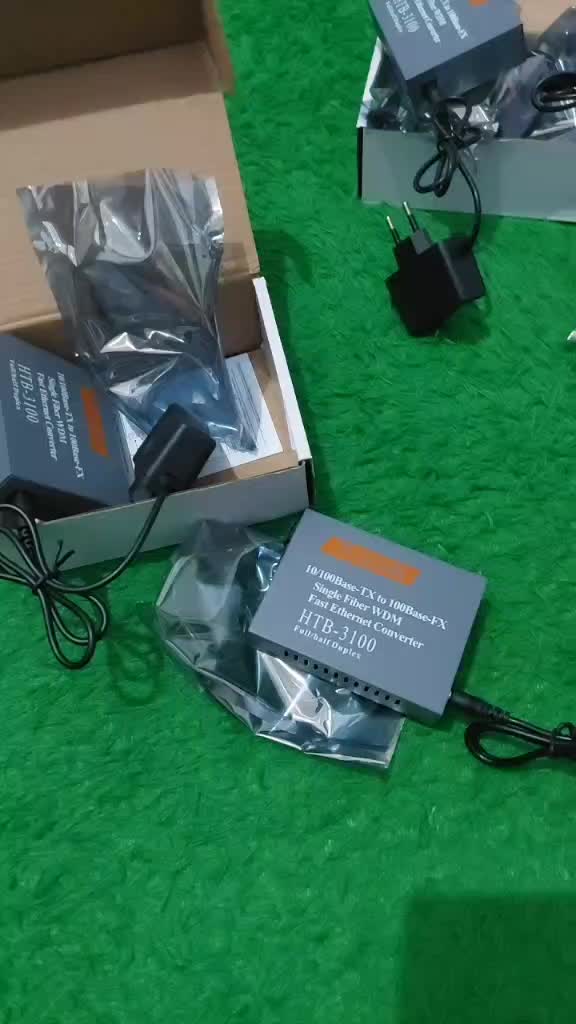

Package Include:

1x HTB-3100A

1x HTB-3100B

1xAdaptor
