Please Note:- Fanvil X301P adalah Penerus atau versi upgrade dari Fanvil X1SP yang telah Discontinued (End of Life)
- Fanvil X301P adalah IP Phone yang telah mendukung PoE (Powered-Over-Ethernet) , jika masih membutuhkan adaptor/Power Supply Unit, silahkan memilih option "with PSU / Adaptor" pada pilihan pembelian di atas.
- Power Supply/Adaptor adalah Original dari FANVIL (bukan adaptor lokal atau abal-abal)
Product Overview:

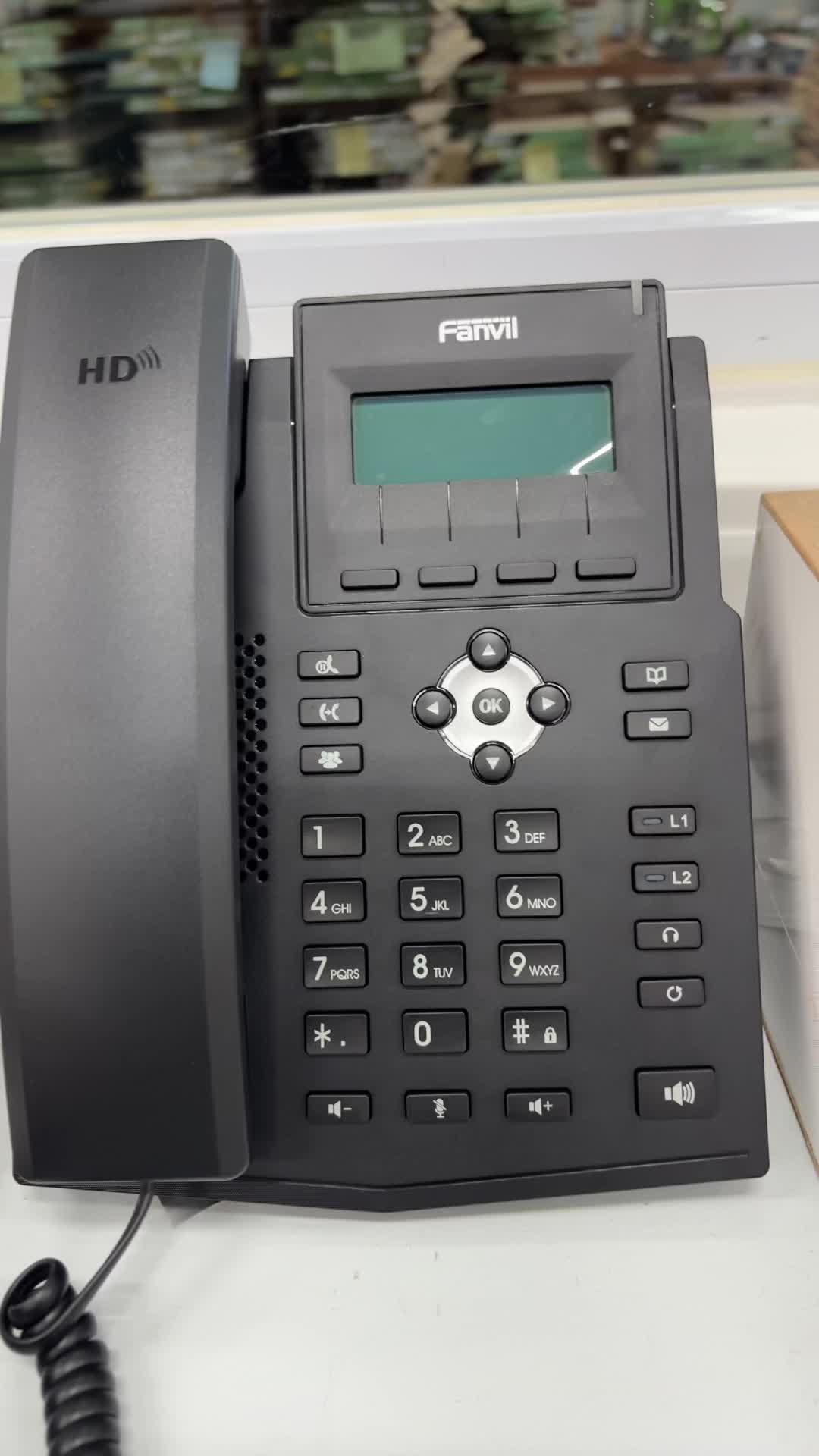

The X301P is the cost-effective SIP phone with multi-function. It features a 2.3- inch 128x48 pixel dot-matrix display, supporting 2 SIP lines and 6-way audio conference to render a user-friendly experience. X301P has rich functions such as HD audio, dual 10/100 Mbps network ports and integrated PoE, providing an efficient and high-quality business communication experience for enterprises.
Fanvil X301P Key Features
• 2,3 inch 128X48 pixel dot matrix display
• 2 SIP Lines
• Support audio codec G722 and Opus, HD wideband audio on speaker phone and handset
• Support 6 way audio conferences
• Support EHS wireless headset
• Dual 10/100 Mbps network ports & integrated PoE
• Two installation methods of desktop stand and wall mountable( for wall mountable, wall bracket are to be ordered separately)
Fanvil X301P - Technical Specifications:
Generic:
- 2 SIP Lines
- HD Voice
- PoE Enabled
- Dot-matrix display screen
- Handset / Hands-free / Headset mode
- Desktop Stand / Wall-mounted (for wall-mounted need an additional wall hanging part)
- Optional External Power Supply (5v600ma)
Phone Functions- Local Phonebook (1000 entries)- Remote Phonebook (XML/LDAP, 1000 entries)- Call logs (In/Out/Missed, 600 entries)- Blocked List / Allowed List Call Filter- Voice Message Waiting Indication (VMWI)- Programmable DSS/Soft keys- Network Time Synchronisation- Support Poly wireless headset (Through Poly APD-80 EHS Cable)- Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)- Support Recording (Through Server)- Action URL/Active URI- uaCSTA- Customize Incoming Call Ringtone- Time Plan (timed reboot/timed forward/timed upgrade/timed config)- Hidden DTMF- Ring From Headset Call Functions- Call out / Answer / Reject- Mute / Unmute (Microphone)- Call Hold / Resume- Call Waiting- Intercom- Caller ID Display- Speed Dial- Anonymous Call (Hide Caller ID)- Call Forward (Always/Busy/No Answer)- Call Transfer (Attended/Unattended)- Call Parking/Pick-up (Depending on server)- Redial- Do-Not-Disturb- Auto-Answering- Voice Message (With server)- 6-way audio Conference- Hot Line- Hot desking- Direct IP call without SIP proxy- Action Plan- Dial Plan- Call Completion/Auto Redial- Primary and Backup SIP Servers- Default Ext Line- Multicast- Fuzzy Search Call
Audio- Wideband ADC/DAC 16KHz samping- Narrowband Codec: G.711a/u, G.723.1, G.726, G.729AB, iLBC- Wideband Codec: G.722, Opus- Full-Duplex Acoustic Echo Canceller (AEC)- Voice Activity Detection (VAD)/Comfort Noise Generation (CNG)/Background Noise Estimation (BNE)/Noise Reduction (NR)/Automatic Gain Control(AGC)- Packet loss concealment (PLC)- Dynamic Adaptive Jitter Buffer- DTMF: In-band, Out-of-band - DTMF-Relay (RFC2833)/SIP INFO- VQM Voice Quality Monitoring
Network- Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass- IP Mode: IPv4/IPv6- IP Configuration: Static IP / DHCP / PPPoE- Network Access Control: 802.1x- VPN: L2TP / OpenVPN- VLAN- LLDP- QoS- RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)- DNS-SRV (RFC 3263)- Support Redundant Servers- Agent- HyperText Transfer Protocol Secure Mutual Authentication
Protocols:SIP2.0 over UDP/TCP/TLS; RTP/RTCP/SRTP; STUN; DHCP IPv6; LLDP; PPPoE; 802.1x; L2TP; OpenVPN; SNTP; FTP/TFTP; HyperText Transfer Protocol/HyperText Transfer Protocol Secure; TR-069; AES128 & AES256
Deployment & Management- Auto-Provisioning via FTP/TFTP/HyperText Transfer Protocol/HyperText Transfer Protocol Secure/DHCP OPT66/SIP PNP/TR069- Web Management Portal- Web-based Packet Dump- Configuration Export / Import- Phonebook Import/Export- Firmware Upgrade- Syslog- Network Firewall- Online Upgrade
Physical Specifications- LCD 128x48 pixel graphical LCD with backlight- Keypad: 33 keys, including:*4 Soft-keys*9 function keys (Hold/Transfer/VoiceMessage/Conference/Phonebook/MWI/Headset/Redial/Hands Free*4 Navigation keys*1 OK Key*12 Standard Phone Digits key*3 Volume Control Keys (Up/Down/Mute (Microphone)- HD Handset (RJ9) x1- Standard RJ9 Handset Wire x1- 1.5M CAT5 Ethernet Cable x1- Desktop Stand x1- Status Indicator Light x1 (Red)- RJ9 Port x2: Handset x1, Headset x1- RJ45 Port x2: Network x1, PC x1 (Bridged to Network)- Security Slot x1- Power: DC5V / 0.6A or PoE*POE complies with the IEEE802.3af standard*Power adapter: Input:100-240VAC~50/60Hz Output:5V/0.6A- Power Consumption (Adapter): 0.8W~1.29W- Power Consumtion (PoE): 1.25~1.86W- Working Temperature: 0 ~ 45℃- Working Humidity: 10 ~ 95%- Installation:
*Desktop Stand
*Wall-Mounted (optional)- Colour: Black- Device Dimensions:
*Desktop Stand (45°): 169 x 201.1 x 177.4mm
*Desktop Stand (50°): 169 x 191.9 x 185.8mm
*Wall-Mountable: 169 x 120.1 x 213.7mm- Gift Box Dimensions: 250 x 220 x 55mm- Outer CTN Dimensions: 460 x 300 x 270mm (10 PCS)
Packaging Content:- X301P Phone- Handset- Handset cable- Ethernet Cable- Stand- Quick Installation Guide
View more
without PSU / Adaptor
with PSU / Adaptor
