Dijual per 10pcs ya gan.

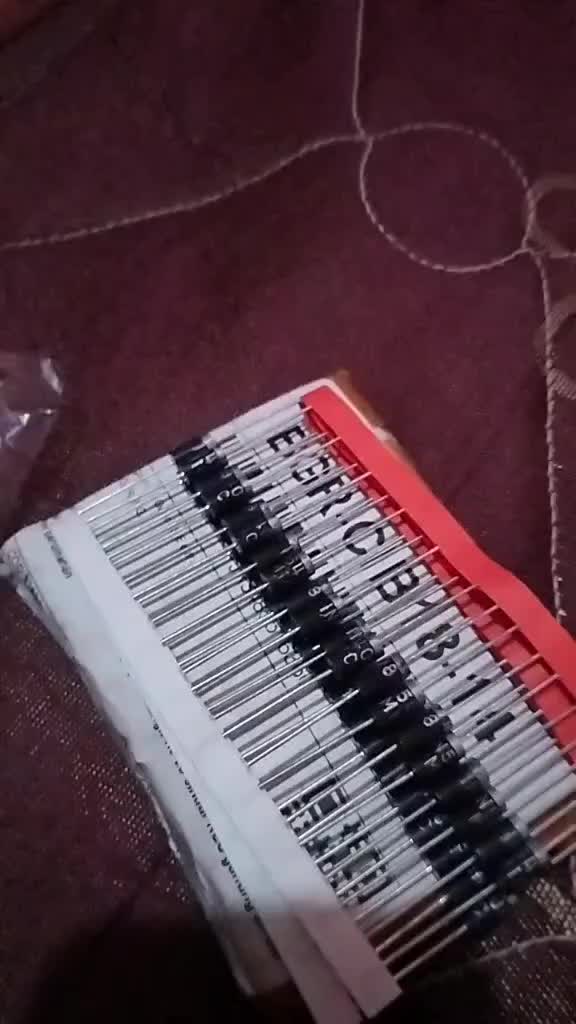

1N5408 IN5408 1N 5408 IN 5408 3A 1000V Dioda Diode Rectifier DO-27
FEATURES :- Low cost construction.- Fast switching for high efficiency.- Low reverse leakage- High forward surge current capability.-High temperature soldering guaranteed: 260/10 seconds, 0.375" (9.5mm)lead length at 5 lbs (2.3kg) tension.MECHANICAL DATA :- Case: transfer molded plastic- Epoxy: UL94V - 0 rate flame retardant.- Polarity: Color band denotes cathode end.- Lead: Plated axial lead, solderable per MIL - STD - 202E method 208C- Mounting position: Any- Weight: 0.042 ounce, 1.19gramsSPECIFICATION :Maximum Repetitive Peak Reverse Voltage: 1000vMax RMS Voltage: 700vMax DC Blocking Voltage: 1000vMaximum Average Forward Rectified Current:3.0AmpsPeak Forward Surge current: 125AMaximum Instantaneous Forward Voltage at 3.0A :1.0vMaximum Full Load Reverse Current :500uATypical Junction Capacitance :40pFTypical Thermal Resistance : 30Package: DO-27
