LiitoKala Lii-S2 CHARGER BATERAI USB 2 SLOT 14500 18650 26650 2A Li-Ion Ni-MH

1. 2 slots independent charging and MCU management system, Micro USB DC 5V input min.2A.

2. With battery polarity auto-detection function(any polarity)

3. Selective 0.5A/1A/2A charging currents for Lithium batteries by long press the current button. The defaulted current is 0.5A.

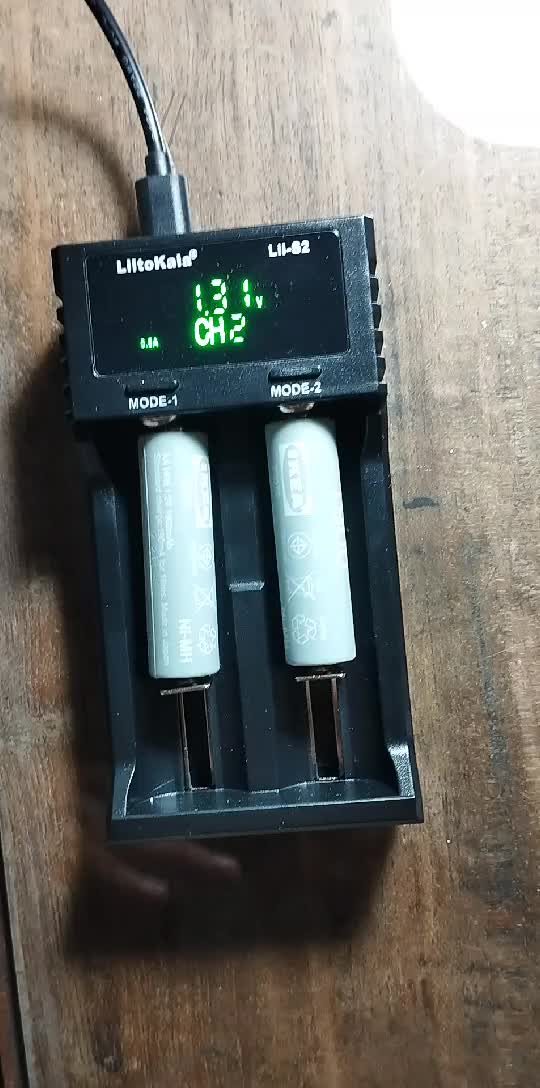

4. Built-in digital tube indicator shows the real-time charging status of channel no. (CH), voltage, current, time capacity and battery type Li-Fe 3.20V / Li-ion 3.70V /Li-ion 3.85V (IMR); When two channels charging, total current will be no more than 2A( when only 1pcs battery inserted, the charging current will be 2A, after the second battery inserted, the current will be automatically lowered to 1A; when charging finish, it shows "FULL".

5. Identify Li-Ion and Ni-MH battery automatically; Select manually by short-press the mode button for IMR battery(3.85V Li-ion )and LiFePO4 battery(3.2V).

6. Activation function for 0V battery of PCM protection.

7. Will not charge batteries with 0.0≤U

8. Multi-safety protection functions of over-charging, over-discharge, short-circuited and can automatically Identify broken/defective battery(will not charge bad batteries).

9. Charging under constant voltage and current.

Specifications:

Brand : LiitoKala

Model : LII-S2

Input : DC5.0V 2A

Output Voltage : DC 4.20V 4.35V 3.65V 1.50V

Output Current (selectable) : Li-ion /IMR/LiFePO4 - 2Ax1(only one) / 1Ax2 / 500mAx4, NiMH/NiCd : 500mA

Compatible : Li-ion / IMR / LiFePO4 - 26650, 21700, 20700, 18650, 18490, 18350, 17670, 17500, 16340 (RCR123), 14500, 10440, NiMH / Cd: AA, AAA, SC, C

Max Length : 73mm

Weight : 84g

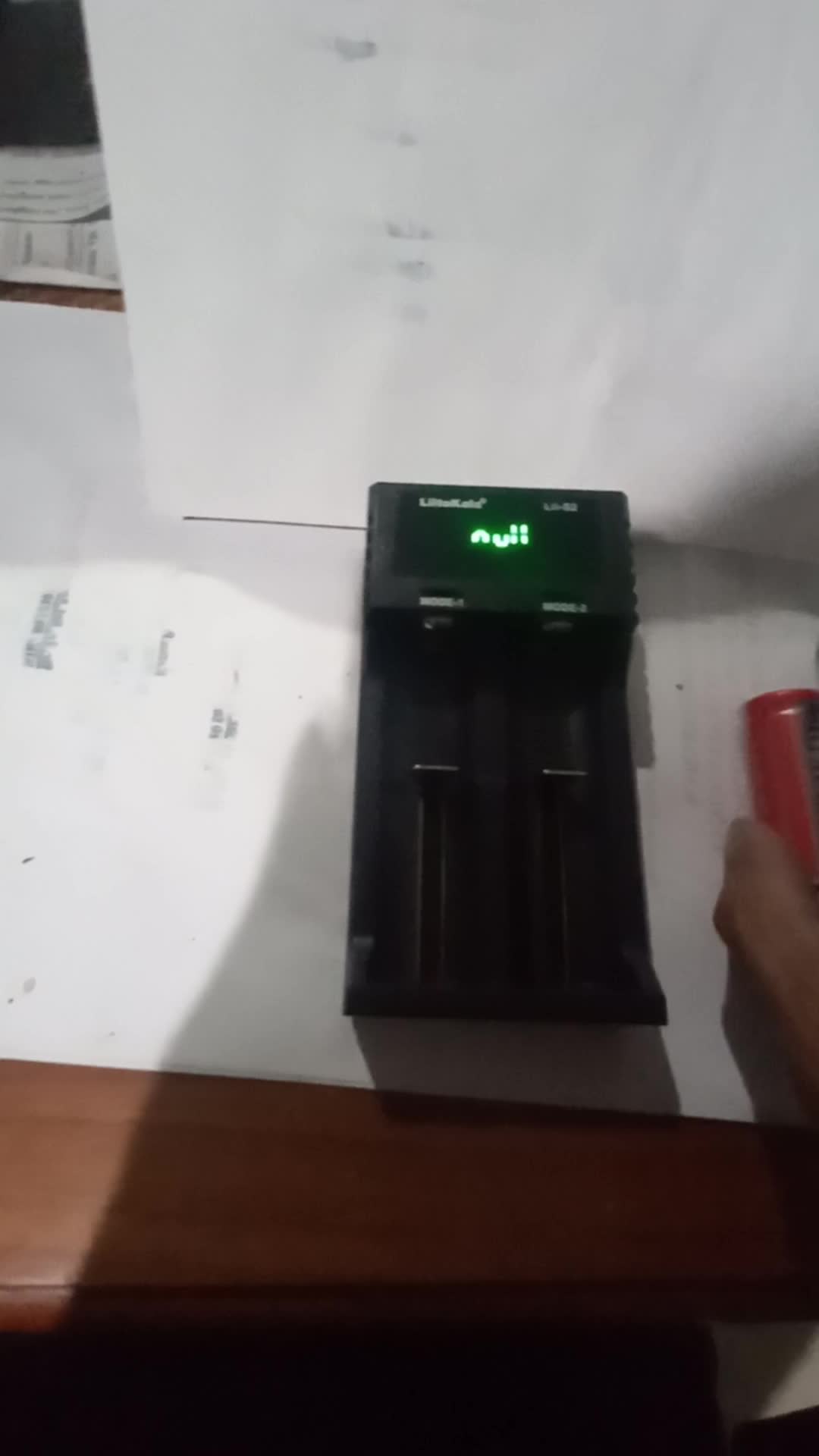

When the battery is inserted or defective battery is inserted, the charger will have no any response showing "null"

When the battery is fully charged, it shows "Full"

Operation instruction:
