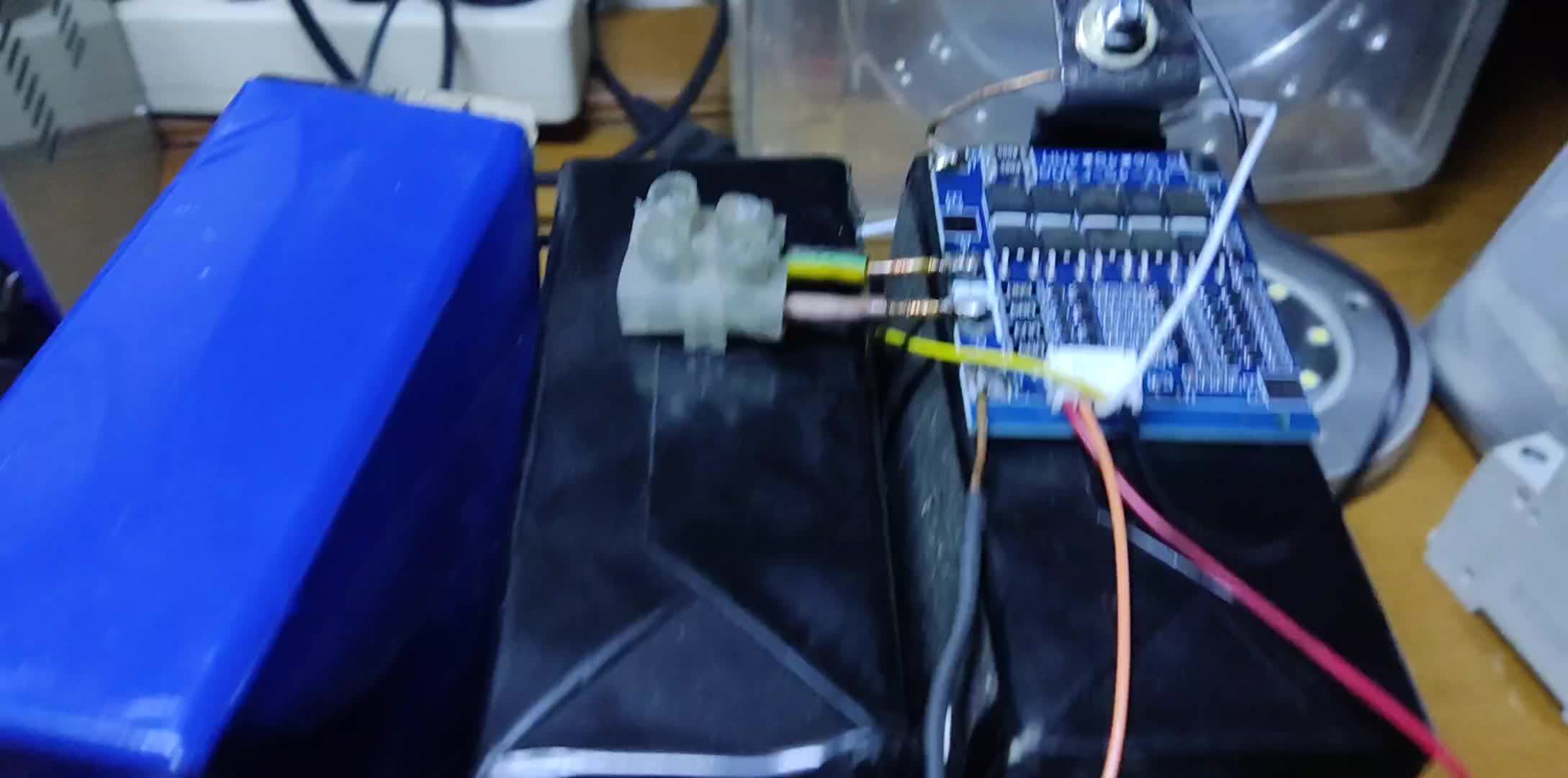

BMS 4S LiFePO4 12.8V PRO 30A Lithium Iron Phosphate Balanced Charger 14.8V LI-ION Battery Protection Board With Balanced
FUNGSI UTAMA :
Fungsi proteksi overcharge,
fungsi proteksi over discharge,
fungsi proteksi hubung singkat,
fungsi proteksi arus berlebih.
Features:
This BMS is designed to work with 3.2V(Nominal) LiFepO4 batteries only.
This board is 4 string 3.2V Lithium iron phosphate battery protection board
High current protection board, continuous 30A current, with balance circuit
The board comes with cable
Specification:
Spesifikasi:
=================================
Model:4S30A
Specifications Over charge detection voltage: 4.28+ 0.05 V
Over charging voltage: 4.095-4.195V
Over discharge voltage: 2.550.08
Over charge detection delay time 0.1s
Temperature range -30-80
Short circuit detection delay time: 100ms
Over current detection delay time: 500 ms
Balanced current: 60mA
Working current: 30A
Over current: 60A
Short circuit protection function: there is, disconnect the load can be self recovery.
Size:45x56mm
Balancing:
Balancing Current: 58mA
Detect Voltage: 3.6 +/- 0.05V
Release Voltage: 3.59 +/- 0.05V
