10/5/1Pcs DC 7-55V Universal Battery Charge Indicator Panel LED Indicator Acid Battery Lithium Battery Voltage Charge Indicator - DC 7-55V W
Kami Bisa Menyediakan Barang yang Anda atau Perusahaan Butuhkan, Terutama yang tidak ada di Indonesia.
- Pengiriman 15-20 Hari.
- Bisa request order jika ada tipe/barang yang diinginkan.

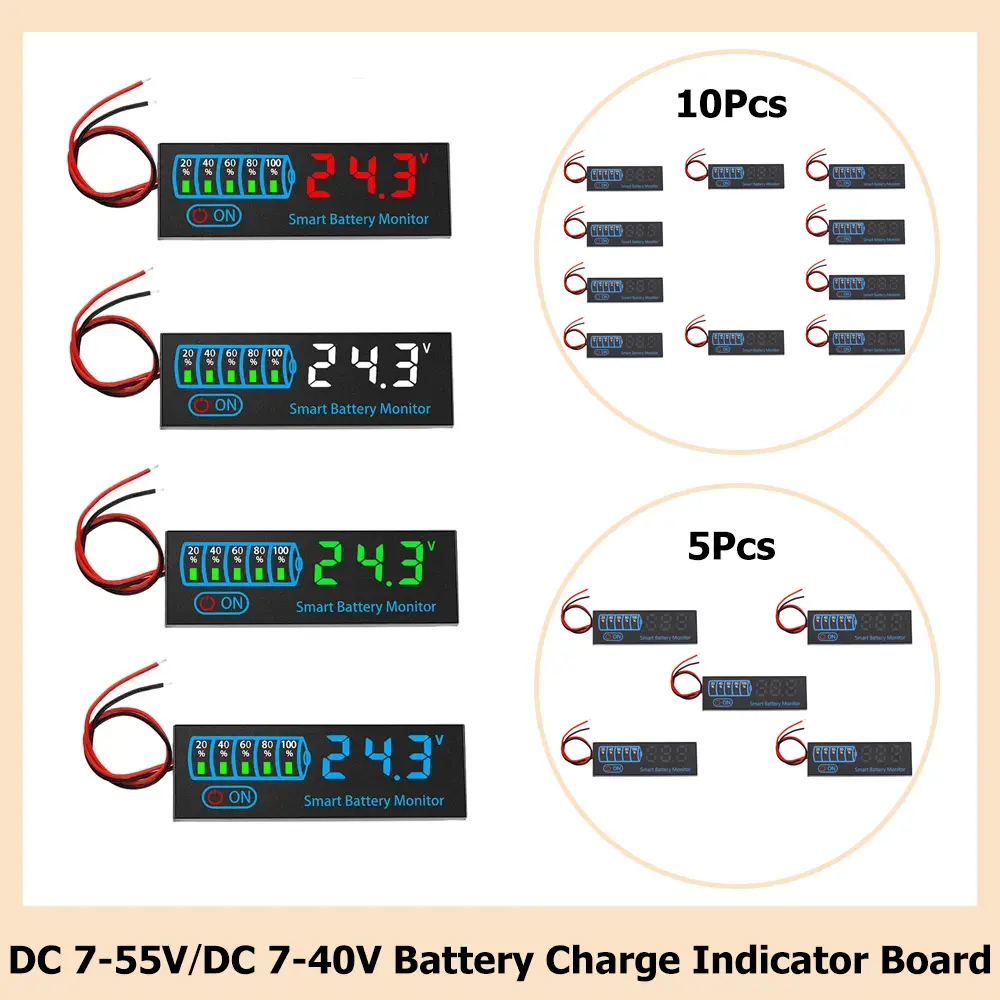

DC 7-55V Acid/Lithium Universal Battery Charge Indicator Board LED D isplay Indicator Voltage Charge Indicator 20MA with Alarm
Features:
1. The product defaults to a ternary lithium battery L03 S voltage (L03) when powered on for the first time.

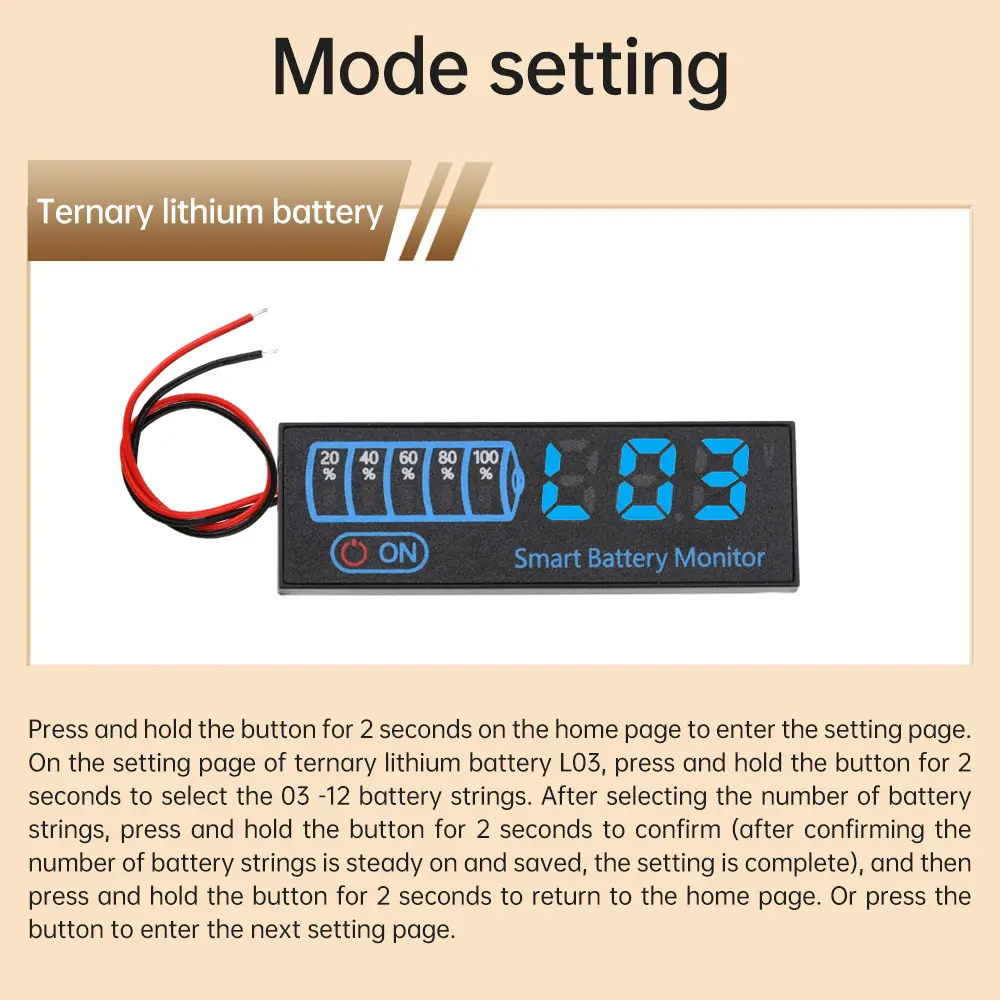

?2. Measurement of ternary lithium battery (L): from L03 S to L12 S.

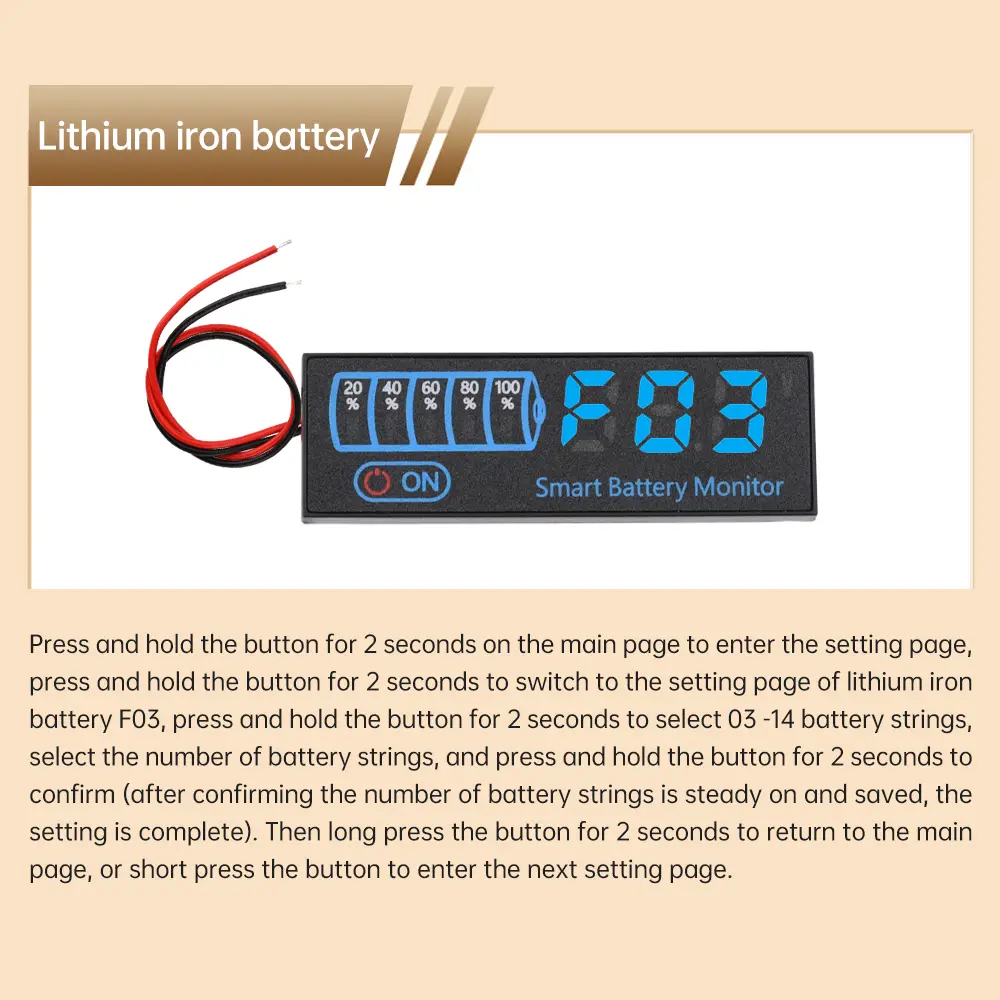

?3. Measurement of iron lithium battery (F): from F03 S to F14 S.

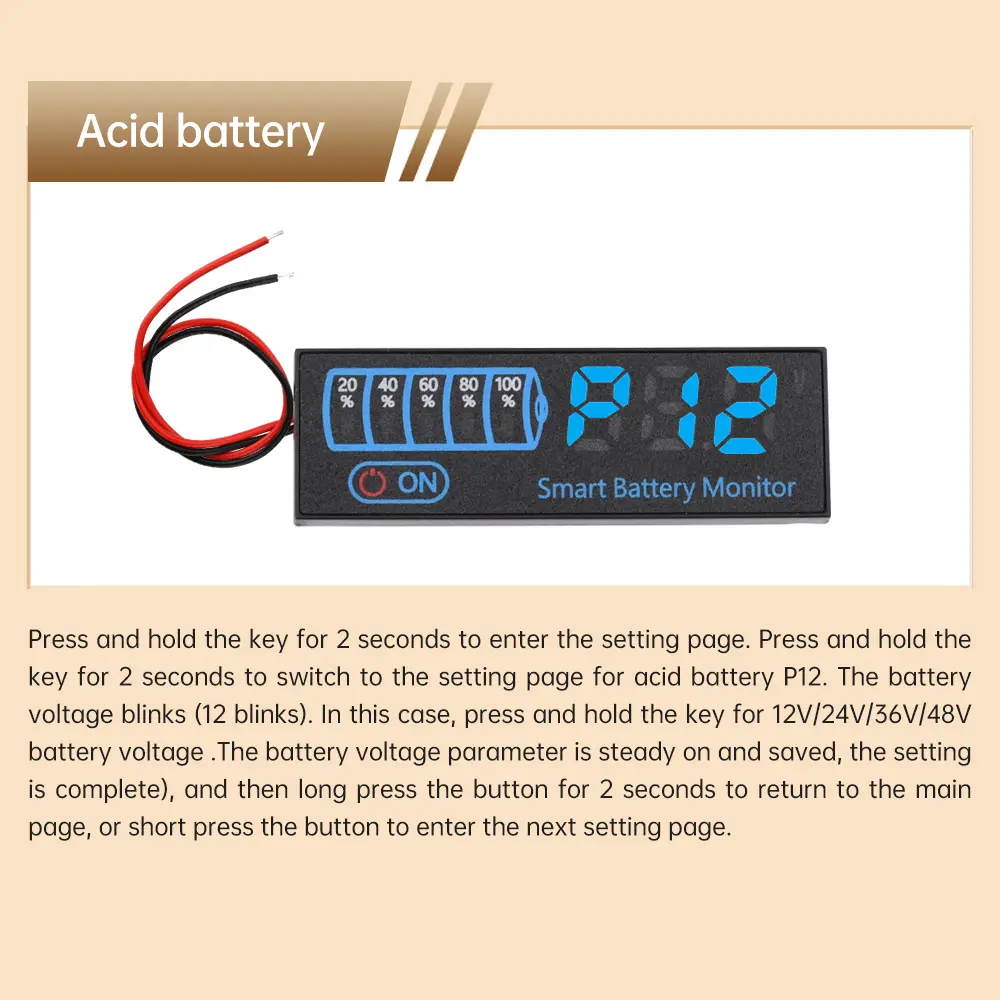

?4. Acid battery (P) measurement: P12V/P24V/36V/48V.

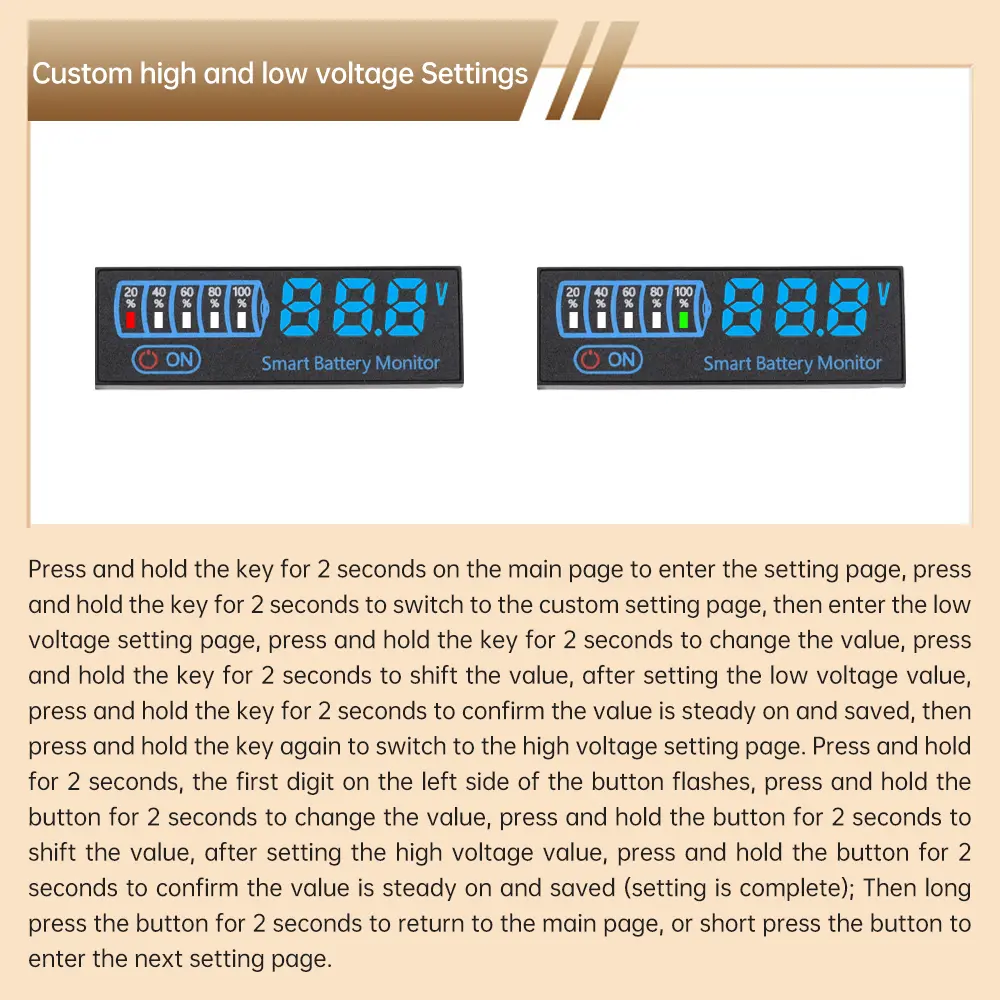

?5. Custom mode: high and low voltage settings, set the voltage values for fully charged and fully discharged.
?6. Low voltage alarm function: When the battery level is equal to or lower than 10%, the red battery grid flashes.
?7. There is a power-off memory storage function.
Specifications:
?Voltage measurement range: DC 7-55V (red display: DC 7-40V)
?Working current: ? 20mA
?Display mode: LED screen
?Measurement of ternary lithium iron: 3S~12S
?Measurement of lithium iron batteries: 3S~14S
?Acid battery measurement: 12V/24V/36V/48V
?Product size: 46 * 15 * 3mm
Button Description:

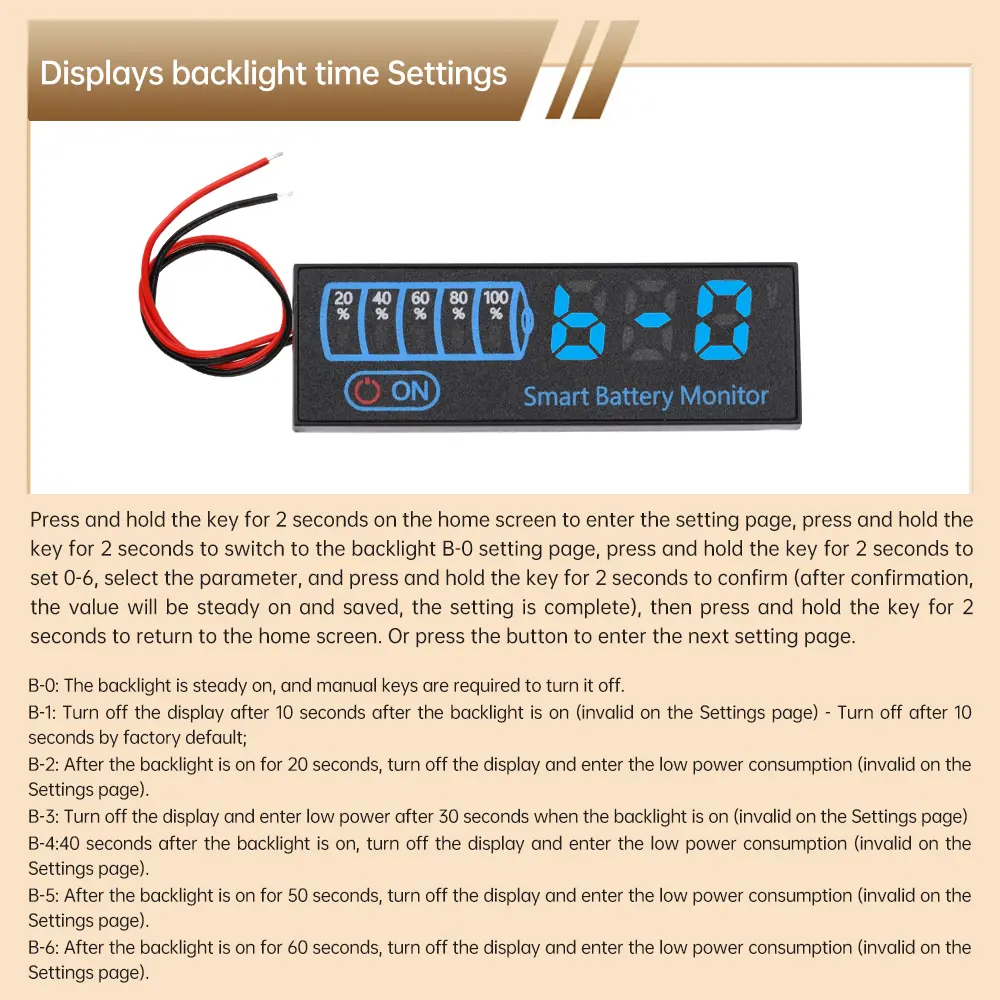

?1. On the normal display page, short press the button to turn off and on the display.
?2. On the normal display page, press and hold the button for 2 seconds to enter the settings page.
Package Included:
?Battery Indicator * 1
