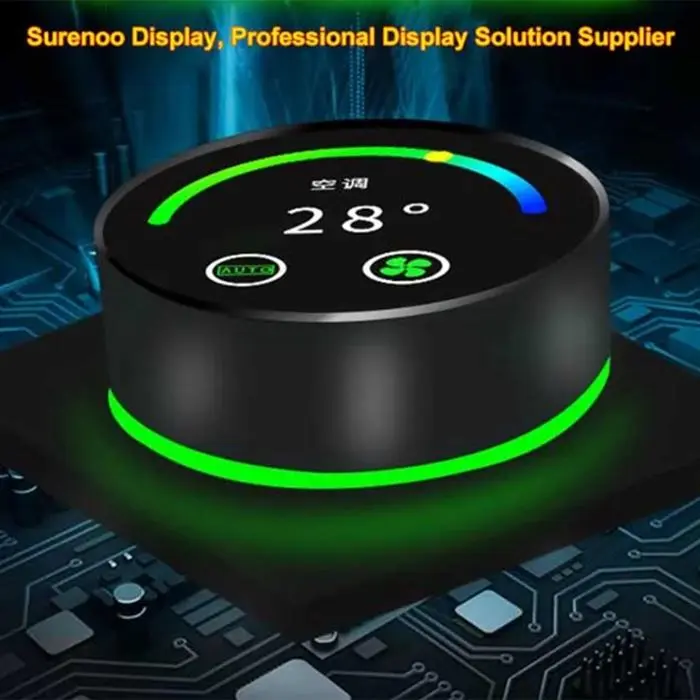

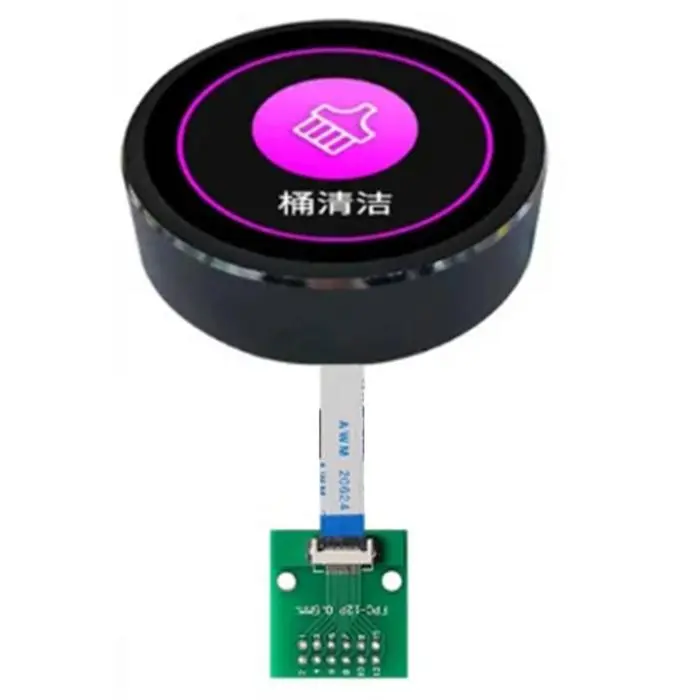

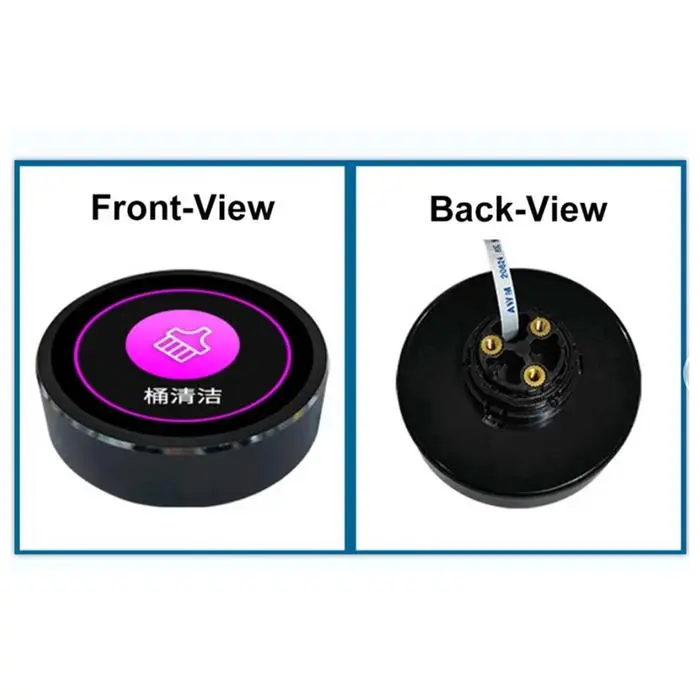

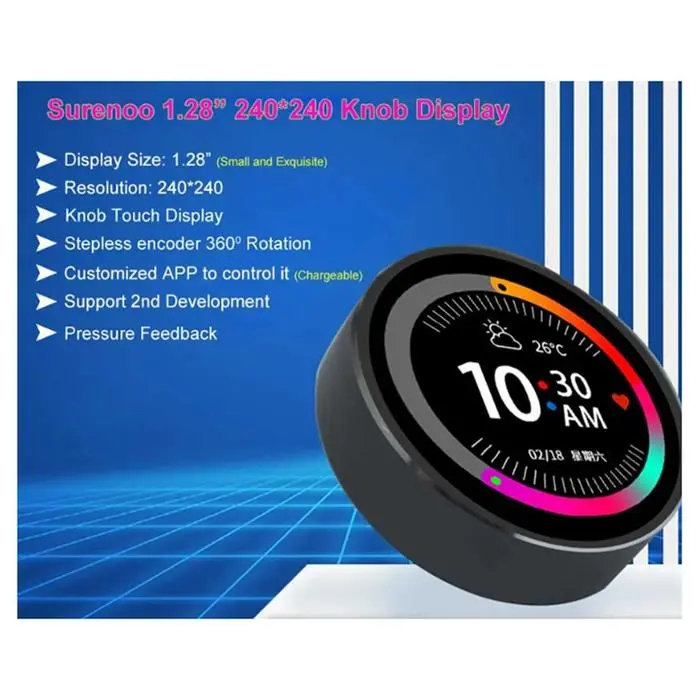

1.28 Inch 240X240 Round Circular Rotary Knob IPS Serial UART UI LCD Module Panel Display Screen Switch Key Durable Easy To Use

⏳ Pre-Order +/- Sampai Alamat 15-20 Harian

Display Size : 43 Compatible Audio & Video Equipment Style : Earphones & Headphones Origin : Mainland China 1.28 Inch 240X240 Round Circular Rotary Knob IPS Serial UART UI LCD Module Panel Display Screen Switch Key Durable Easy To Use

Resolution:240x240

Display Type:IPS

Knob Series Display

Support Press Operation

Support 2nd Development

Rated Voltage:DC5V

Voltage Range:DC4.5V-5.5V

Rated Current:80mA@DC5V

Main Control Chip:LT268B

FLASH(NORFLASH):32Mb

Display Resolution:1.28inch 240x240

Interface of Display:4-wire SPI

Input & Output Interface

Input Voltage DC5V Port:FPC/FFC(10P/0.5)

TX/RX Communication Port:FPC/FFC(10P/0.5)

Colour:Black

Material:Plastic+Metal

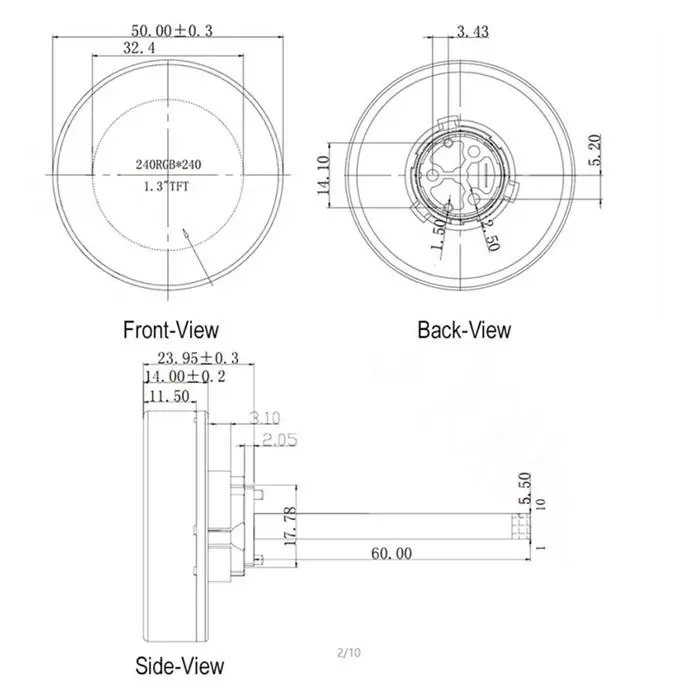

Size:

Display Size:1.28Inch

PCBA Size:42.9MMx42.5MM

PCB Thickness:1.0mm

Package Contents:

1 * Round Knob Display

Only the above package content, other products are not included.

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
