Size : 168mm*27mm
Fiber Type : Single Mode
Connector Type : SC/FC/ST
Item Length : 1m

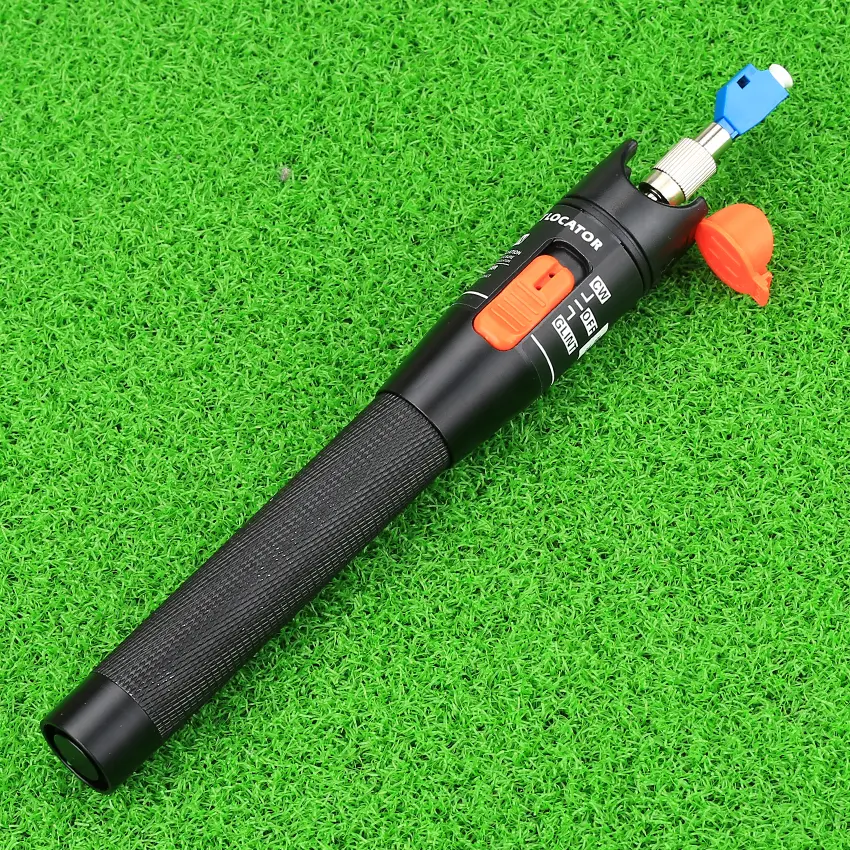

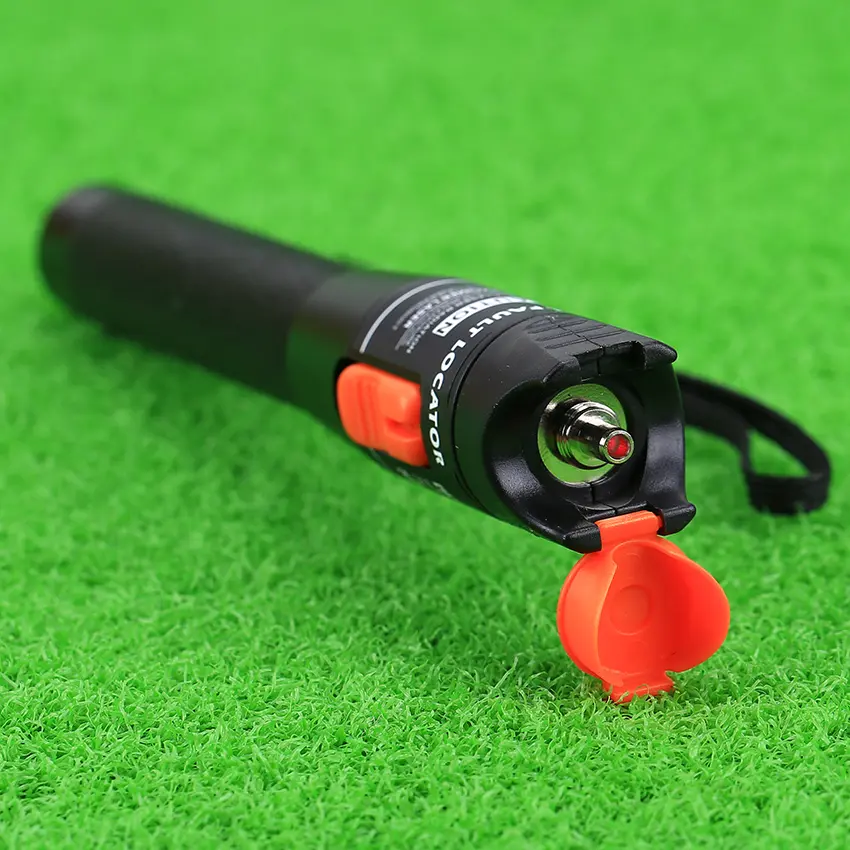

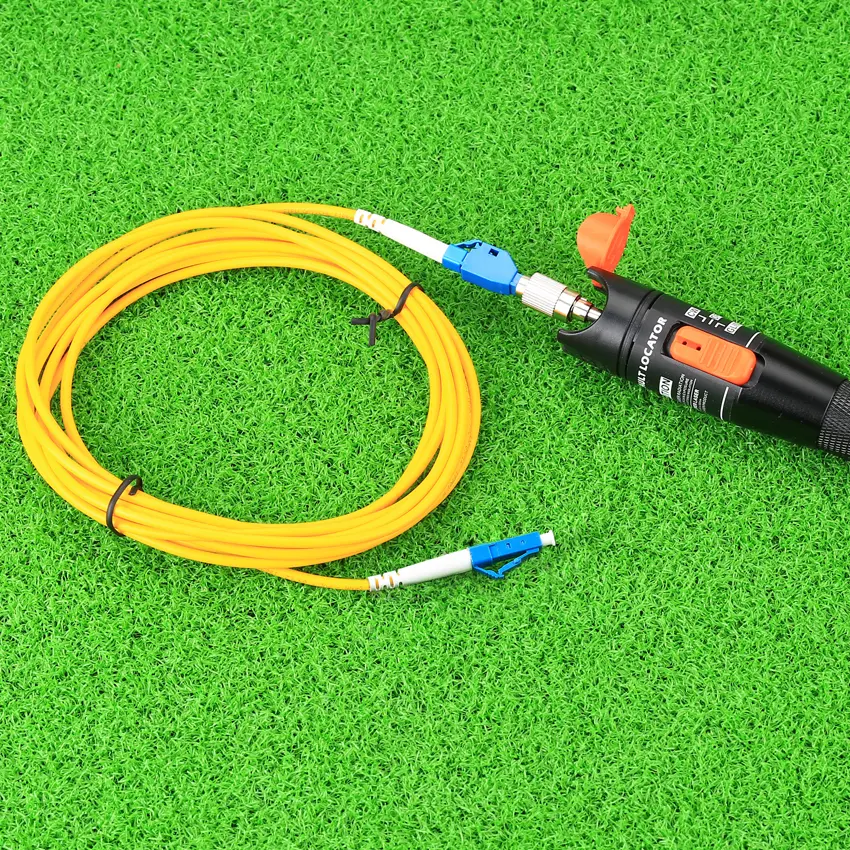

Model Number : VFL-10
Brand Name : KELUSHI
Origin : Mainland China
Certification : NONE
Features:
- Operating mode: CW and GLINT
- FC, SC, ST,LC General interface
- Long inspection distance
- Steady power output
- Sturdy and durable shell
- Pen pattern design, convenient for use and carry
Function:
- Locate the fiber failure, such as fracture and bend
- Failure inspection in OTDR blind zone
- Fiber recognition from head face to end face
- Mechanical transition point optimization
Application:
- Telecom, CATV project
- PDS construction and maintenance
- Optical component manufacture and research
- Other fiber project
Technical Parameter:
- Wavelength: 650+/- 10nm
- Fiber mode: 2.5 mm Universal
- Output power: 10mW
- Inspection distance: 5-10KM
- Electrical source: Two 1.5V Batteries (NOT include)
- Working time of batteries: More than 15 hours
- Operating Temperature: -10- +60 degree C
- Storage Temperature: -20- +70 degree C
- Material of shell: Alum-alloy
- Dimension: Diameter 27*168mm
- Weight: About 160g

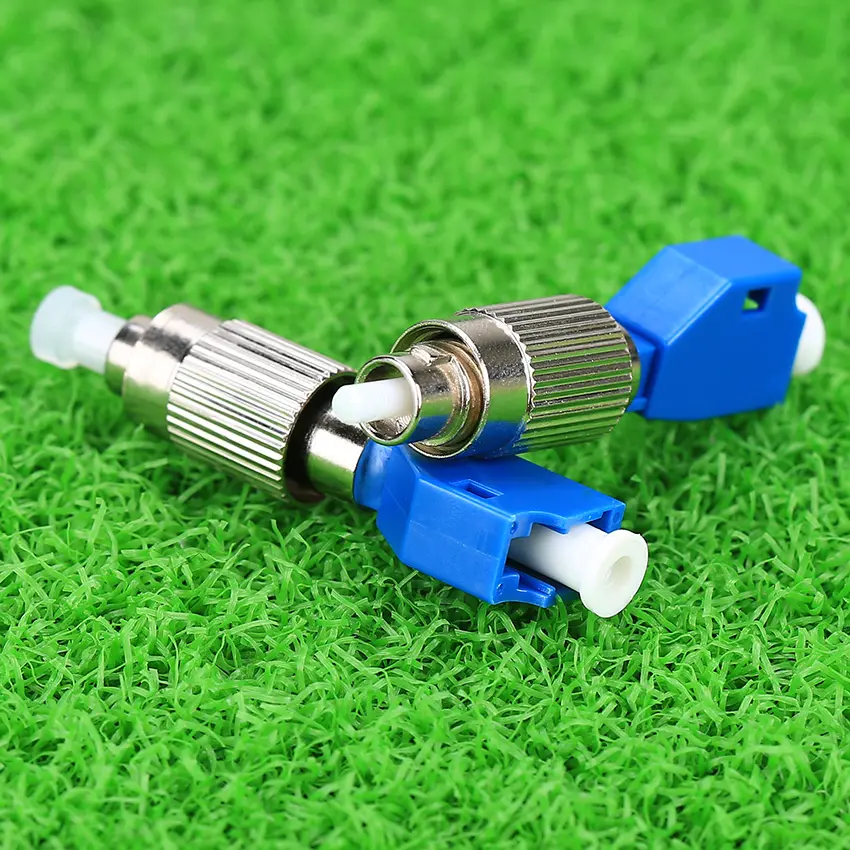

FC-LC fiber adapter
-Insertion loss: 0.20dB
-Mating durability: 500
-Receptacle retention force: 1~2.5N
-Drop test: drop height 1m,5 drops
-Operation temperature: -25c to +70c

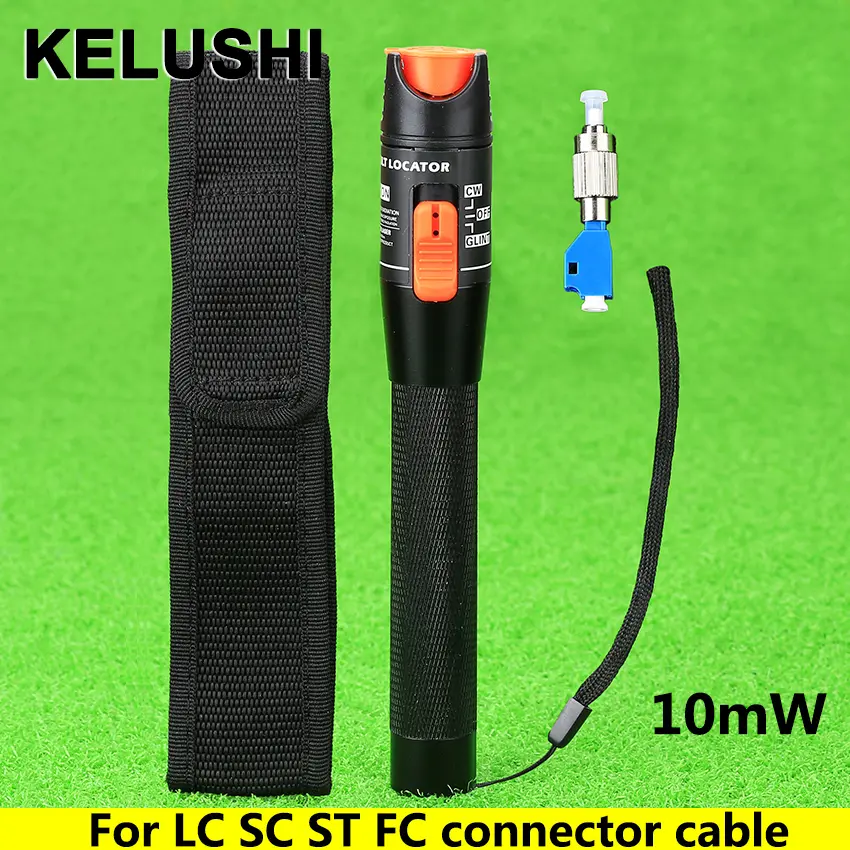

Package include:
1x 10mW visual fault locator
1x FC-LC Fiber adapter
1X Lanyard
1X Visual Fault Locator bag
