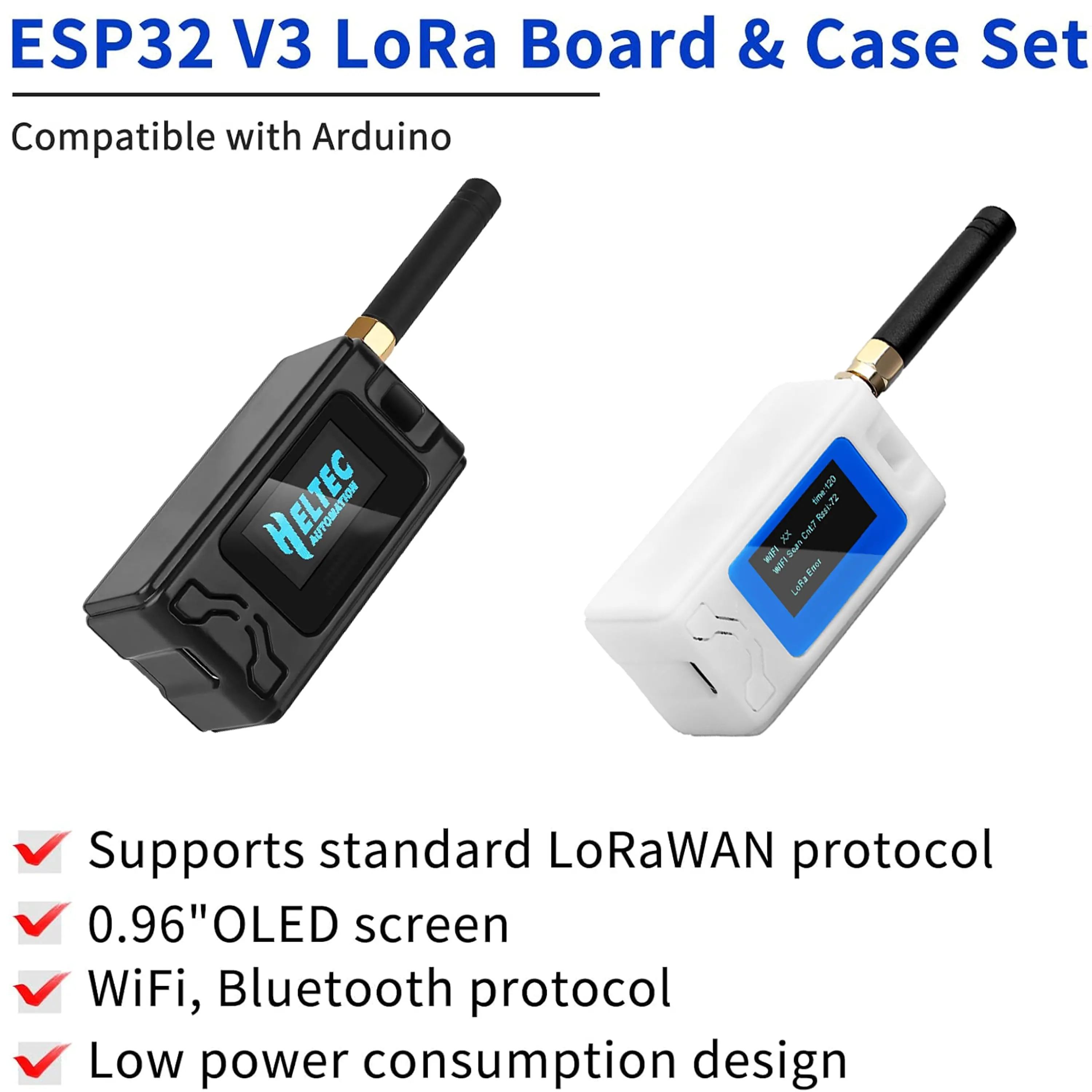

NEW 3 in 1 ESP32 LoRa V3 Development Board + Protect Case
Set
Summary
WiFi LoRa 32(V3) is a classic IoT dev board designed & produced by Heltec Automation. Since its launch in 2017, it has been loved by developers and makers. Widely used in numerous excellent open-source projects and directly made into products for LoRa/LoRaWAN features.
The newly launched V3 version has the same pin sequence as the V2 version and retains Wi-Fi, BLE, LoRa, OLED display, and other functions.
WiFi LoRa 32 (V3) supports the following development methods:
Compared to WiFi LoRa 32 (V3), V2 has made the following upgrades:
Product
WiFi LoRa 32v3
WiFi LoRa 32v2
Display
Low Power Feature
MCU
ESP32-S3FN8
ESP32-D0WDQ6
LoRa node chip
SX1262
SX1267
Bluetooth
BLEv5.0
BLEv4.2
Socket
2.54Header;Type-c;IPEX(V1);SH1.25Battery Port
2.54Header;MicroUSB;IPEX(V1);SH1.25Battery Port
Highlights
Onboard OLED Display
The integrated OLED display can be used to show some
information such as systemstatus and parameters, making
it convenient for users to directly use the entire developme
-nt board for their own product design.
USB Type C
The power supply, firmware download, and debugging
interfaces adopt a moreuniversal USB Type C interface,
making development work more convenient.

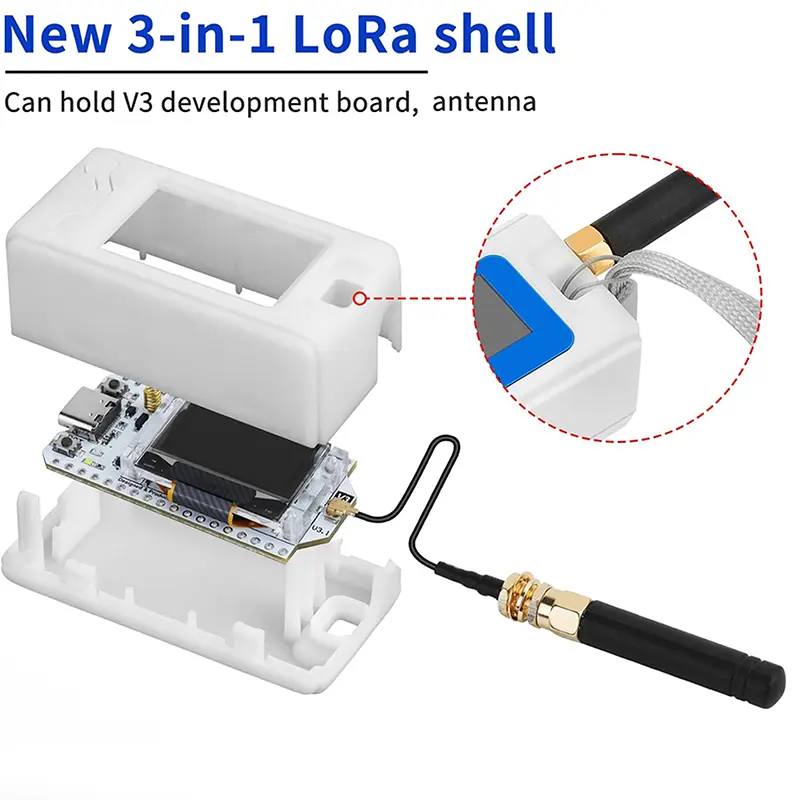

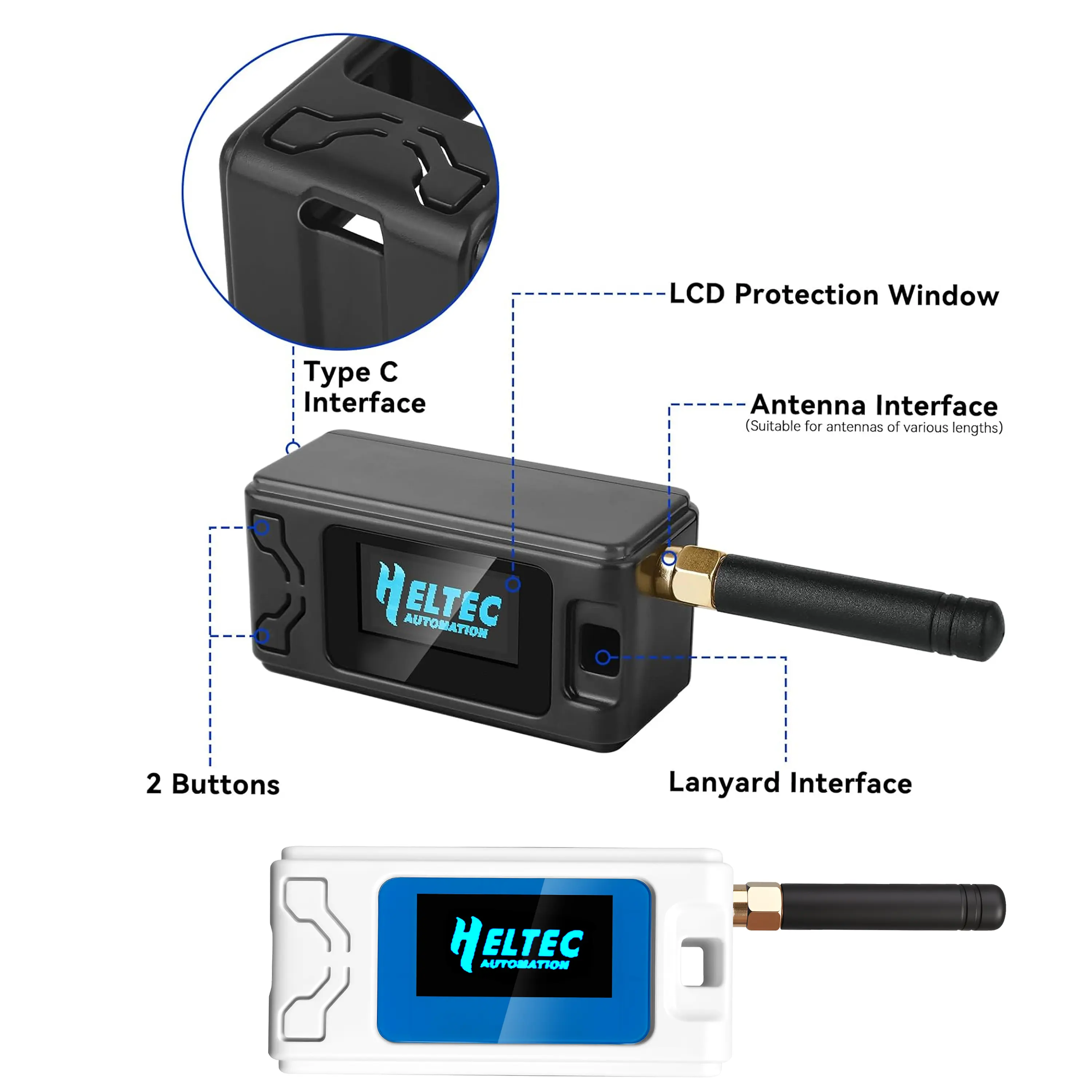

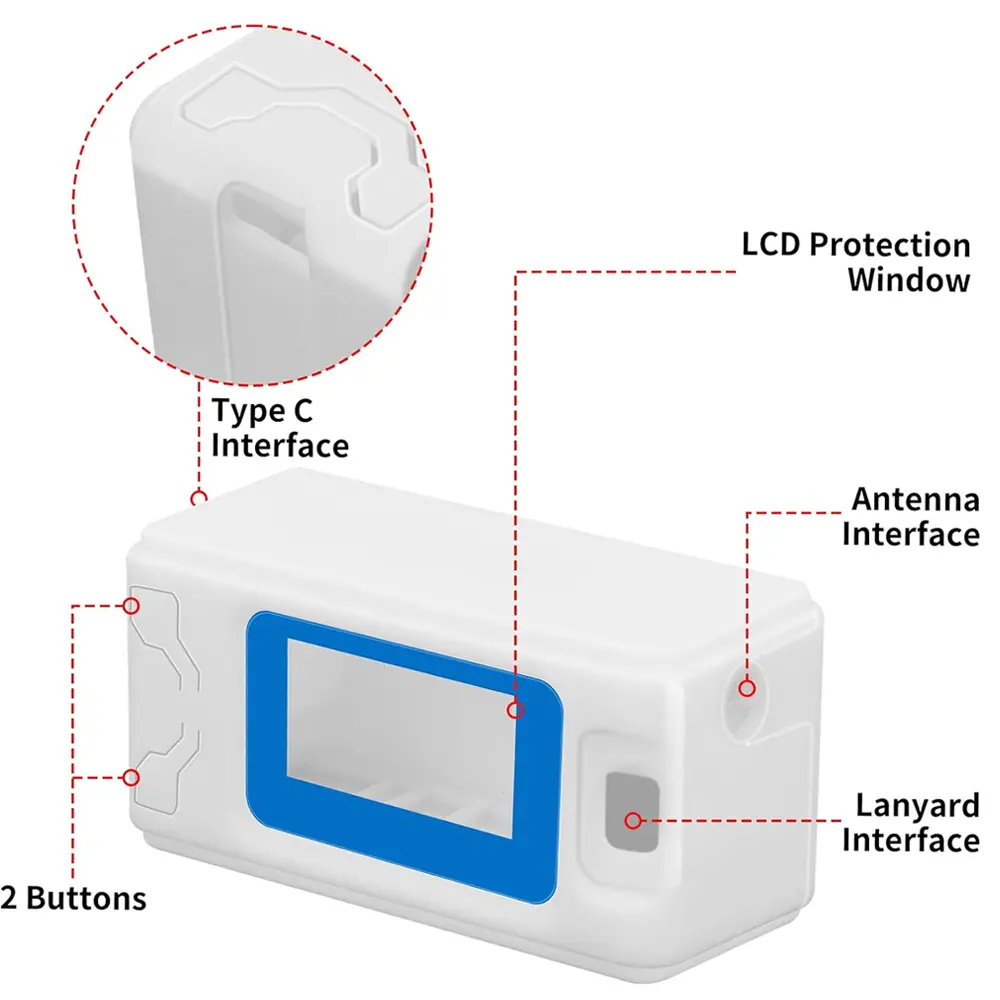

Plastic Shell
We also made a plastic shell as an optional accessory.
Which provide basicprotection for the development board.
The plastic case can hold a 3.7V, 800mAh lithium battery.

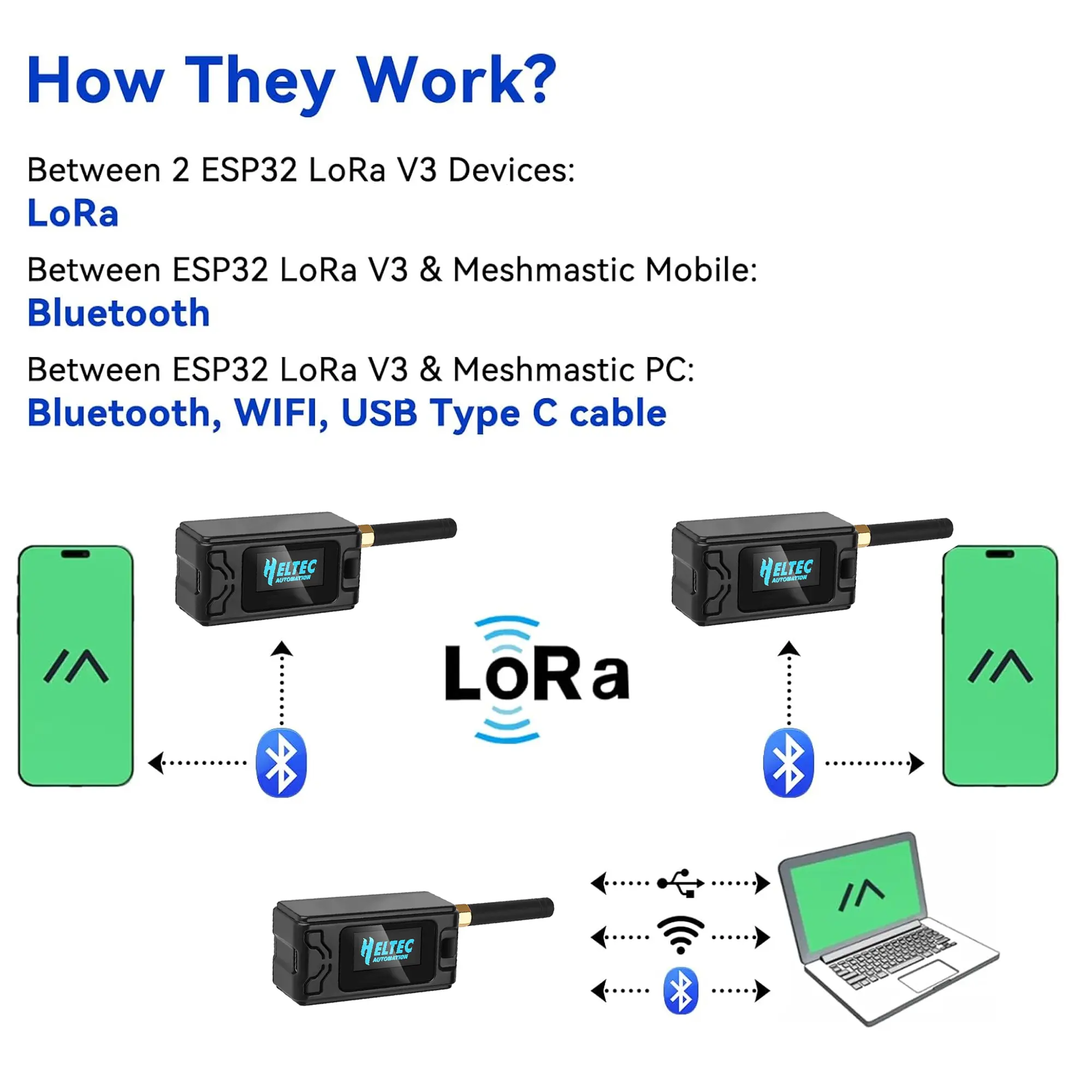

WiFi LoRa 32 is compatible with the following open-source projects:
ESP32 Paxcounter
Disaster Radio
Meshtastic
Tiny GS
...
We also provide a standard ESP32 Arduino LoRaWAN library:
Heltec ESP32 LoRaWAN
This library is already included in the Heltec ESP32 Arduino Framework by
