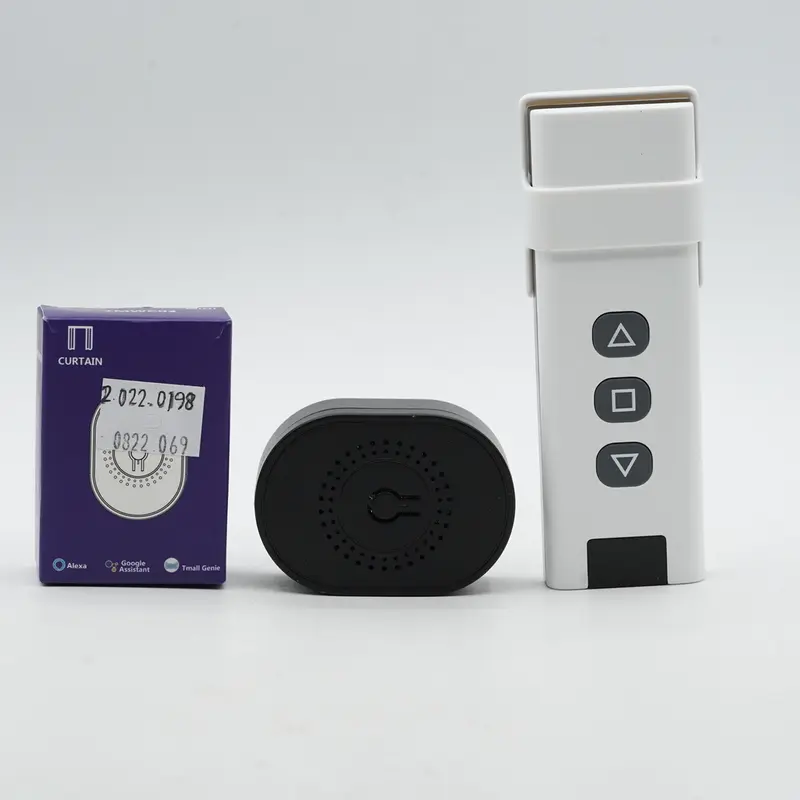

SMATRUL Tuya Mini Smart Life WiFi RF433 Blind Curtain Switch Module

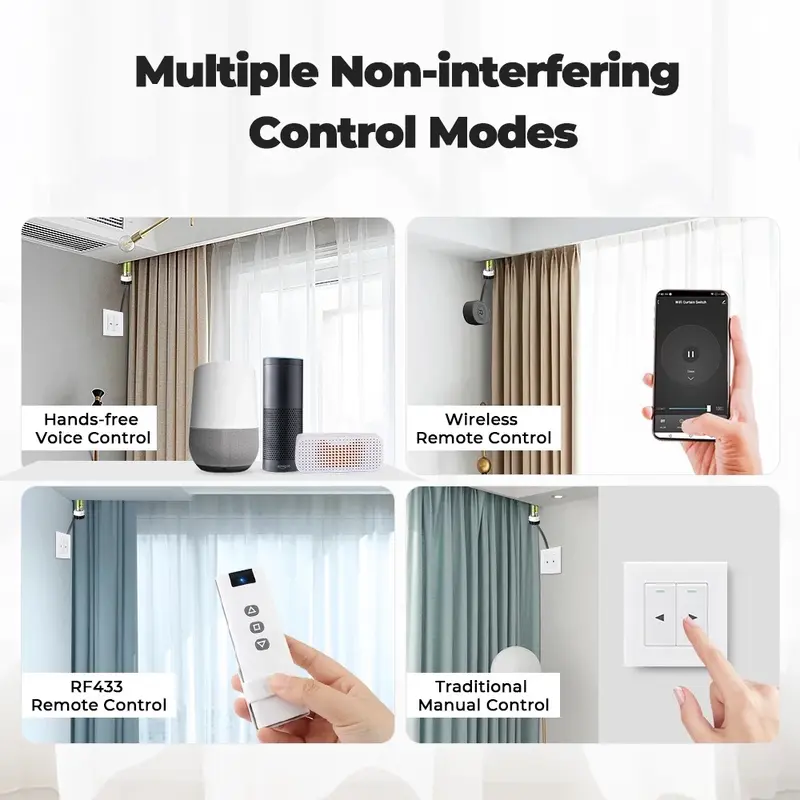

SMATRUL Tuya Mini Smart Life WiFi RF433 Blind Curtain Switch Module Electric Roller Shutter Rolling Motor Window Remote Control | 2.022.0198 | ZH-HFY3-TMWCO2-B1-11 Product Description --WIFI+RF433 remote controlcan be controlled by tuya APP, voice speaker, and the curtain switch module has built-in RF433 frequency, and the remote control can open, close and pause the curtain. The actual distance of the remote control is about 50 meters, and the actual distance depends on the obstacles. --Multiple combinationsThrough the pairing signal, multiple remote controls can control one curtain module, or one remote control can control multiple curtain modules --Voice ControlCompatible with amazon alexa echo, google home, etc., the simple commands of voice control curtain switch adjust the opening and closing of curtains. --Group function Multiple curtain switches in different rooms can be set in groups to realize group control function. Specification Input Voltage: 100-240V 50/60Hz Power load: 500W (max) WiFi Standard: 2.4GHz 802.11 b/g/n Working frequency: 433.92MHZ Working temperature: -10 + 40 App Name: Tuya Smart / Smart Life Size: 59*42*20mm Distance: 100M (open distance) Remote control parameters 1. Working frequency: 433.92MHZ 2. Size: 110*37*15(mm) 3. 12V 23A battery 1PC (without battery) Notice 1. This device is only suitable for 4-wire motors. Please check that your motor has 4 wires. (Motor not included, need to be purchased separately) 2. The switch is connected to the electric tubular motor, and the motor must be connected to the neutral wire. The switch is only suitable for 100-240V AC motors (motors are not included, which need to be purchased separately), not for 5-24V DC motors 3. To protect the motor, please keep the manual switch on the wall in the ""STOP"" position before using the App to control the blinds.
