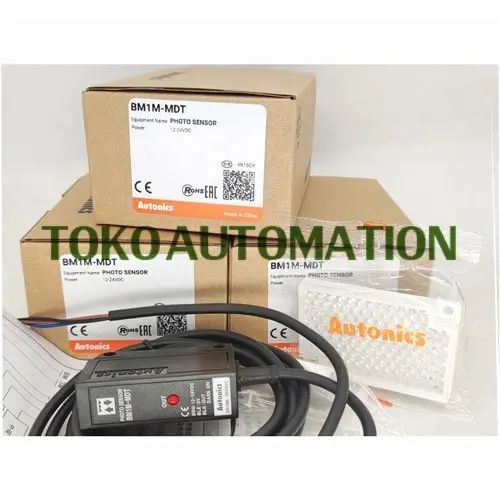

NPN Dark ON BM1M-MDT 1m Retroreflective PHOTOELECTRIC Sensor SE85

BM1M-MDT 1m Retroreflective PHOTOELECTRIC Sensor SE85 Feature: Sensing type : Retroreflective type Sensing distance : 1m(MS-2) Sensing target : Opaque material of min. Ø60mm Light source : Infrared LED(940nm) Response time : Max. 3ms Power supply : 12-24VDC ±10%(ripple P-P: max. 10%) Operation mode : Dark ON Control output : NPN open collector Sensing type Retroreflective type Sensing distance 1m(MS-2) Sensing target Opaque material of min. Ø60mm Light source Infrared LED(940nm) Response time Max. 3ms Power supply 12-24VDC ±10%(ripple P-P: max. 10%) Current consumption Max. 40mA Sensitivity adjustment Fixed Operation mode Dark ON Control output NPN open collector Connection type Cable type(Ø4, 2m) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -10 to 60℃, storage: -25 to 70℃
