AC watt meter kwh daya 6in1 PZEM-022 220V 100A vlot meter alat ukur

Test voltage: 80 ~ 260VAC

Current:100A

Rated power:100A/22000W

Operating frequency: 45-65Hz

Measurement accuracy: 1.0 grade

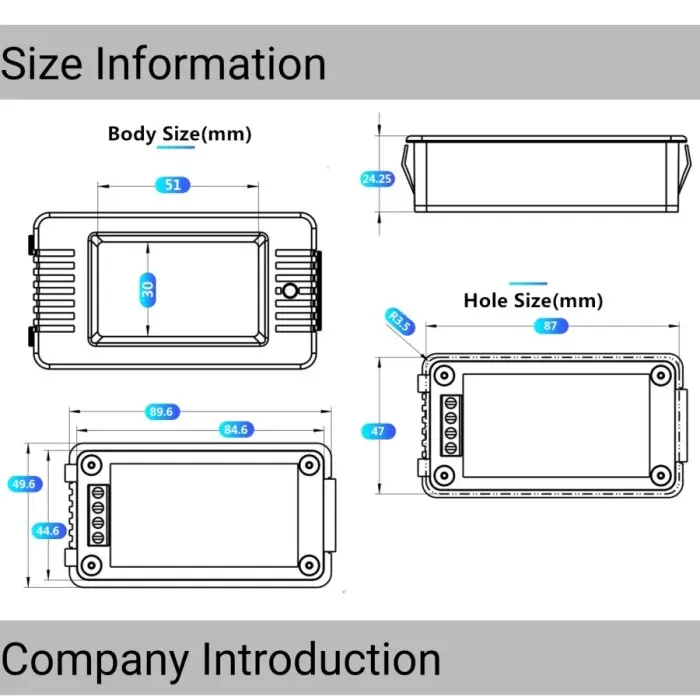

Size: 9*5*2.5cm/3.5*2*1in

Wire length:19cm/7.5in

Weight: Approx.110g/3.9oz



Appearance and Key function:

I.Display Interface

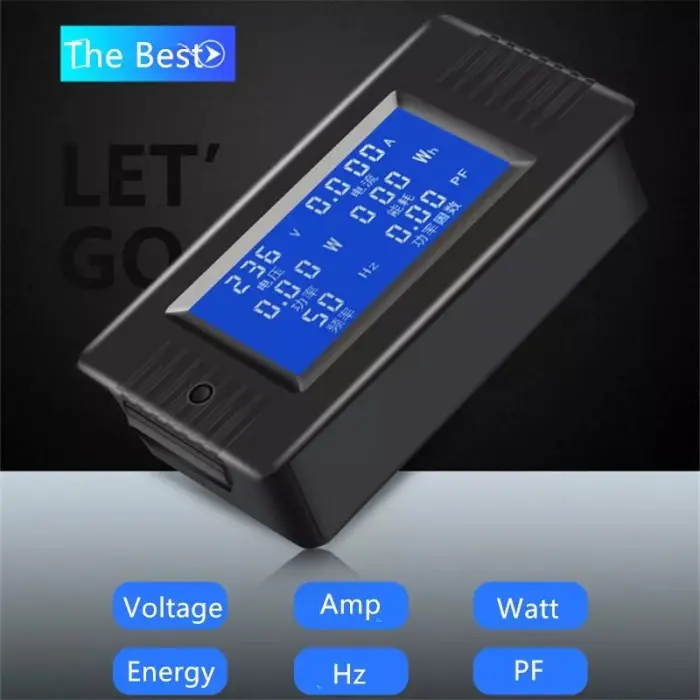

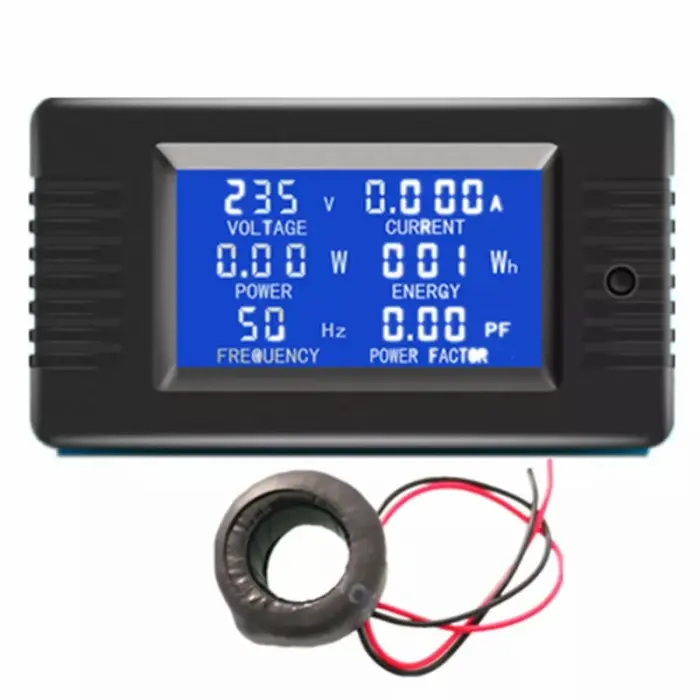

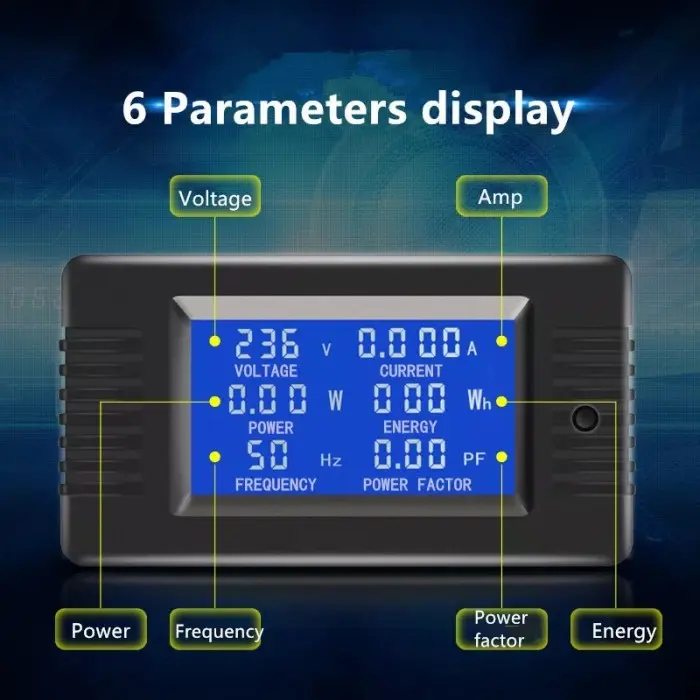

Display interface is large-screen LCD, it can display six parameters at the same time.

II.Display format

1. Power: test range: 0~22000W, Starting measure power:0.2W

＜10W display format:1.00~9.99W

＜100W display format:10.0~99.9W

＜1000W display format:100~999W

＜10000W display format:1.00~9.90kW

≥10000W display format: 10.0~22.0kW

2. Energy: test range: 0~999kWh

＜1kWh display format:0~999Wh

＜10kWh display format:1.00~9.99kWh

≥10kWh display format: 10~999kWh

3. Voltage: test range: 80~260V

Display format: 80~260V

4. Current: test range: 0~100A,Starting measure current: 0.001A

＜10A display format:0.000~9.000A

≥10A display format:10.00~99.99A

5. Frequency: test range: 45~65Hz

Display format: 45~65Hz

6. Power factor: test range: 0~1PF

Display format: 0.00~1.00PF



Key function:

1. Backlight control

Short press the key to turn on or off the backlight, the backlight has memory function, it can store the on or off state when power off.

2. Reset energy

Step1: Long press the key for 5 seconds until the energy value flash, then release the key.

Step2: Short press the key again, then the energy value is cleared and exit the reset flashing state.
