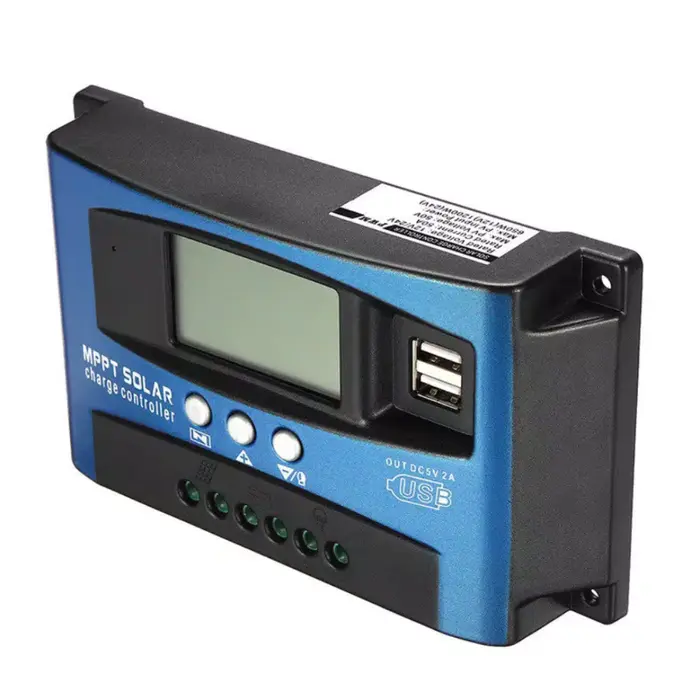

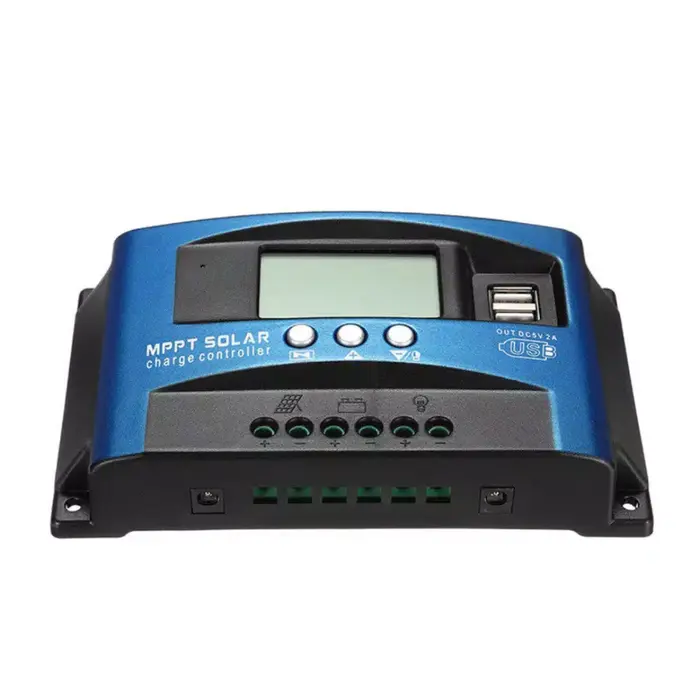

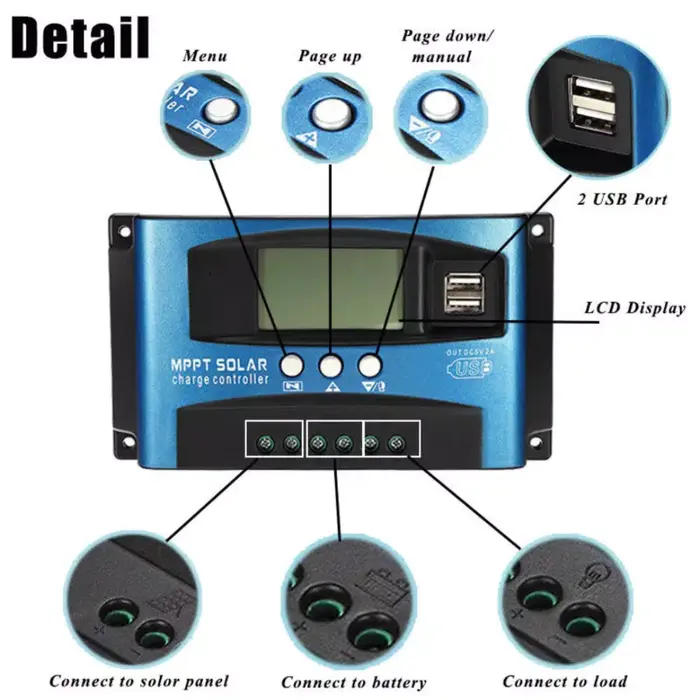

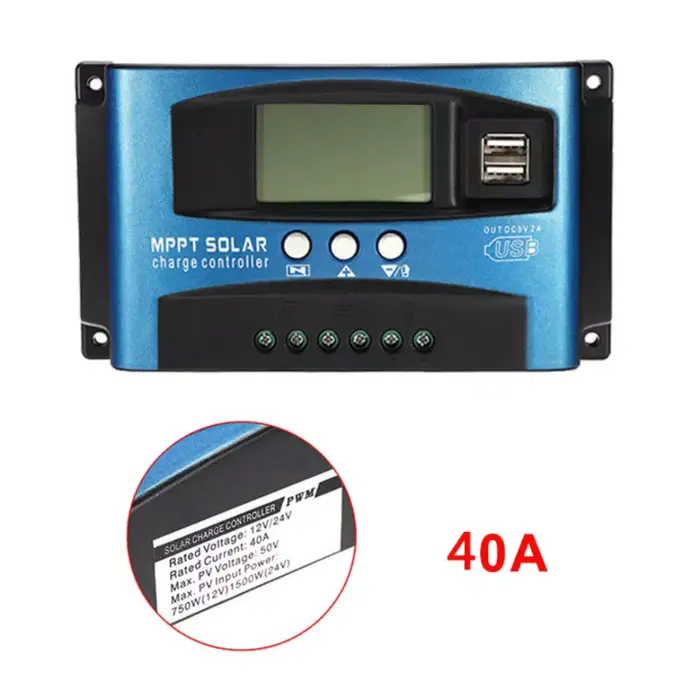

Solar Charger Controller Mppt 40a 12v 24v

MPPT SOLAR CHARGE CONTROLLER 12VDC 24VDC 40 A. Alat Pengatur Sistem Pembangkit Listrik tenaga Matahari dengan Microcontroller. Alat ini mendapatkan input dari Solar Panel atau Panel Surya yang akan mencharge AKI dan akan otomatis memutus jika AKI sudah penuh atau kelebihan beban. Dibandingkan dengan PWM controller konvensional, teknologi MPPT meningkatkan efisiensi pengisian hingga 30% . Product features: Applicable to various types of batteries, MPPT function Temperature sensor battery charging compensation Overload protection (automatic restoration) Overcharge protection Short circuit protection (automatic restoration) , Thunder protection Reverse discharge protection Reverse polarity connection protection (automatic restoration) Under voltage protection Size: about 168*94*35mm / 6.61*3.70*1.38in System voltage: 12 / 24V adaptive Rated charging current: 40A Rated discharge current: 10A Solar photovoltaic voltage :12V battery with 18V solar panel, 24V battery with 36 solar panel Full Voltage Value : Lithium Battery (12.2V) | B02 Colloidal Battery (14.2V) | B03 Open Cell (14.6V) Floating Charge Voltage : 13.7 V ( Default, Adjustable ) Discharge cut-off voltage::10.7 V ( default, adjustable ) Discharge recovery voltage: 12.6 V ( default, adjustable ) Standby current :10mA USB Output : 5V / 2A MAX Operating temperature:- 35 - 60 1. Press the menu key in the main interface, select the interface to adjust the corresponding parameters and set the working state of the equipment. 2. Working mode of load, COT manual mode load output, AUTO automatic light control mode. 00: 58 Set the output time after no sunlight. 3. Set the real-time working status: D 13.1 V the battery voltage value display, D 29.1 '" temperature display, D2.1A solar charging current display, large current charging arrow flows fast, and vice versa. Packing List: 1 *Solar charging controller 1 *Manual 1 *Packing box
