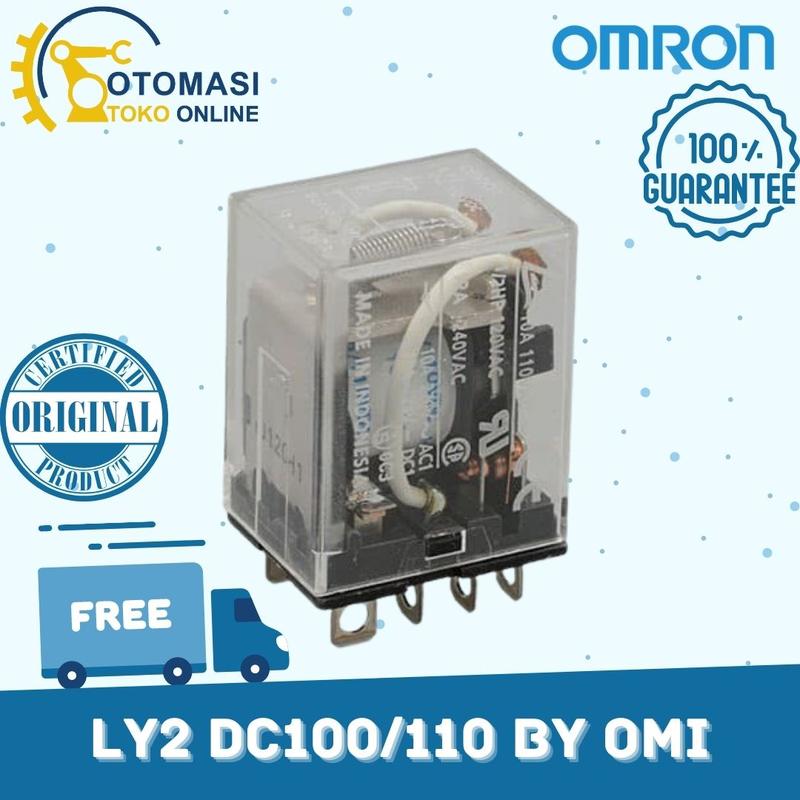

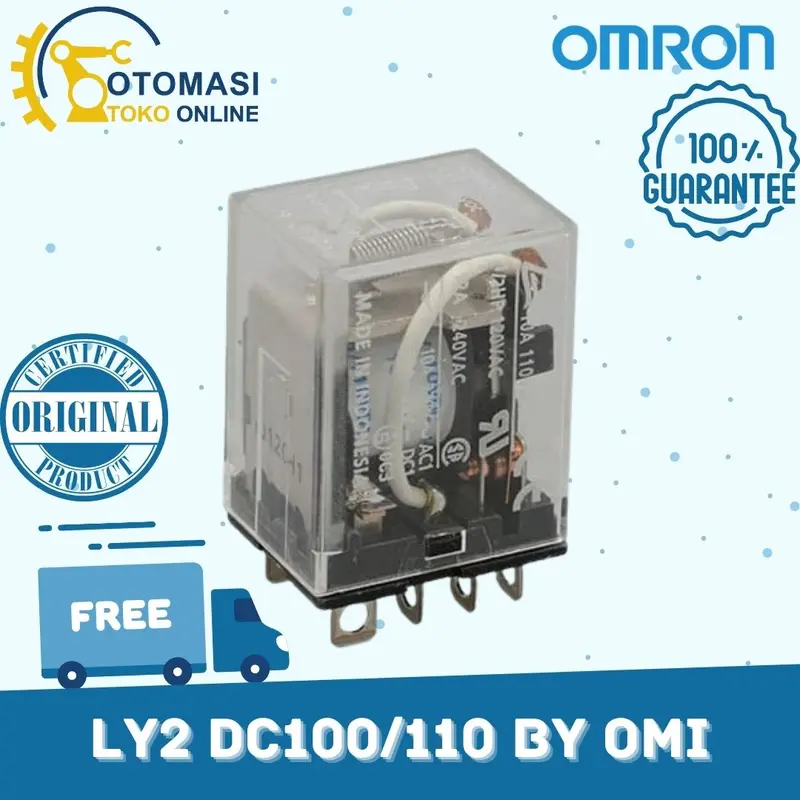

OMRON LY2 DC100/110 BY OMI RELAY
spesifikasi
- Coil ratings 100 VDC 9.1 mA
110 VDC 10 mA
- Contact form DPDT
- Contact method Single
- Contact material Ag alloy
- Contact rated load 110 VAC 10 A (Resistive load)
110 VAC 7.5 A (Inductive load (cosφ = 0.4))
24 VDC 10 A (Resistive load)
24 VDC 5 A (Inductive load (L/R = 7 ms))
- Terminal structure Plug-in terminal
Contact resistance 50 mΩ max. (Voltage drop method with 5 VDC 1 A)
Operating time 25 ms max. (With rated operating power applied, 23 ℃, not including contact bounce)
Reset time 25 ms max. (With rated operating power applied, 23 ℃, not including contact bounce)
Maximum operating frequency Mechanical: 18000 time/h
Rated load: 1800 time/h
Insulation resistance Between coil and contacts: 100 MΩ min. (at 500 VDC)
Between contacts of same polarity: 100 MΩ min. (at 500 VDC)
Between contacts of different polarity: 100 MΩ min. (at 500 VDC)
Dielectric strength Between coil and contacts: 2000 VAC 50/60 Hz 1 min
Between contacts of same polarity: 1000 VAC 50/60 Hz 1 min
Between contacts of different polarity: 2000 VAC 50/60 Hz 1 min
Vibration resistance (destruction) 10 to 55 to 10 Hz, 0.5-mm single amplitude (1-mm double amplitude)
Vibration resistance (Malfunction) 10 to 55 to 10 Hz, 0.5-mm single amplitude (1-mm double amplitude)
Shock resistance (destruction) 1000 m/s2
Shock resistance (Malfunction) 200 m/s2
Endurance (Mechanical) 100 million operations min. (switching frequency 18,000 operations/h)
Endurance (Electrical) 500,000 operations min. (23 ℃, switching frequency 1,800 operations/h)
Failure rate 100 mA at 5 VDC (failure level: Preference value, Switching frequency: 120 operations per minute)
Ambient temperature (Operating) -25 to 55 ℃ (with no freezing or condensation)
Ambient humidity (Operating) 5 to 85% RH
Mounting method Socket
sebelum order tolong tanya stok terlebih dahulu
